TeamDrive Web Portal Administration

Disabling the Apache Access Log

In the default setup, Apache is used as a reverse proxy to route all calls from the TeamDrive browser App to the Docker containers. This can generate a large number of requests so there is no point in keeping the normal access log activated. We therefore recommend deactivating it in a production environment. Only the error log should be left enabled. To facilitate this, comment out the following line in the default httpd.conf:

# CustomLog logs/access_log combined

If problems occur, logging can be activated for a specific user (see http://httpd.apache.org/docs/2.2/mod/mod_log_config.html). e.g. all access to TeamDrive Agent using port 49153 will be logged (the required Apache logging module needs to be enabled again):

SetEnvIf Request_URI 49153 agent-49153
CustomLog logs/agent-49153-requests.log common env=agent-49153

Restart the Apache instance and check the log files for errors.

You can discover the port used by an agent by using the command:

[root@webportal ~]# docker ps -a | grep <username>

The port used will be in the 6th column of the output which has the form: 0.0.0.0:<agent-port>->4040/tcp, e.g. 0.0.0.0:49153->4040/tcp.

Changing an Admin User’s Password

The Web Portal Administration Console can be accessed by all Admin Users by entering the correct username and password.

An existing user with administrative privileges can change his password directly via the Administration Console’s login page or via the Admin Users page of the Administration Console.

On the login page, click on Change Password... to enable two input fields New Password and Repeat Password that allow you to enter the new password twice (to ensure you did not mistype it by accident). You also need to enter your username in the Username field and the current password in the Password: field above. Click Login and Change Password to apply the new password and log in.

../_images/WebPortalChangePassword.png

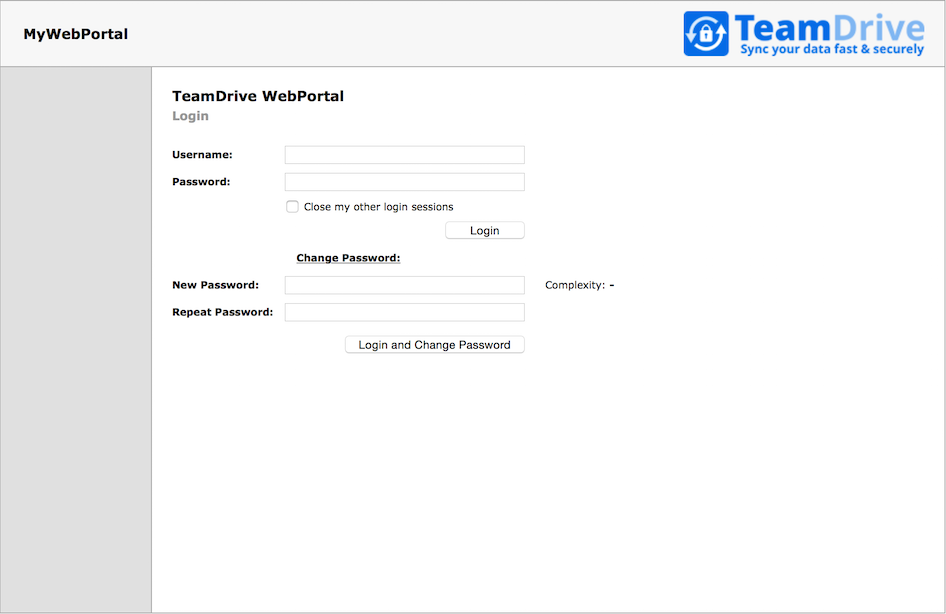

Web Portal Administration Console: Change Password

You can also change your password while being logged into the Administration Console. If your user account has “Superuser” privileges, you can change the password of any admin user, not just your own one.

Click User List to open the user administration page.

The page will list all existing user accounts and their details.

../_images/WebPortalAdminUsersList.png

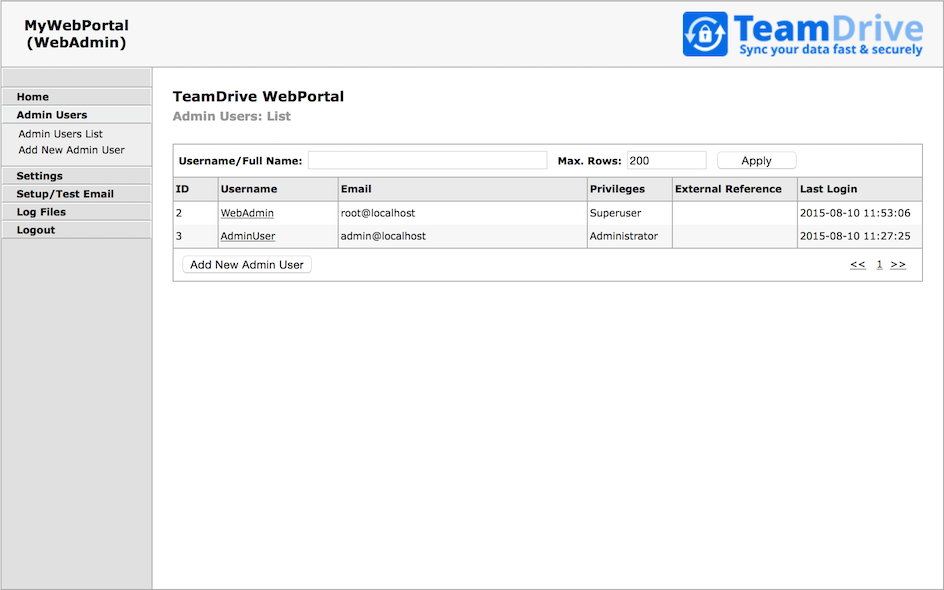

Web Portal Administration Console: Admin Users List

Click the username of the account you want to modify. This will bring up the user’s details page.

../_images/WebPortalAdminUsersDetails.png

Web Portal Administration Console: User Details

To change the password, enter the new password into the input fields New Password and Repeat Password and click Save to commit the change.

The new password will be required the next time this user logs into the Administration Console.

In case you lost or forgot the password for the last user with Superuser privileges (e.g. the default HostAdmin user), you need to reset the password by removing the current hashed password stored in the MySQL Database (Column Password, located in Table webportal.WP_Admin). This can be performed using the following SQL query.

Log into the MySQL database using the teamdrive user and the corresponding database password:

[root@webportal ~]# mysql -u teamdrive -p
Enter password:

[...]

mysql> use webportal;
Database changed

mysql> SELECT * FROM WP_Admin WHERE UserName='WebAdmin'\G
*************************** 1. row ***************************
           ID: 1
       Status: 0
     UserName: WebAdmin
        Email: root@localhost
     Password: $2y$10$JIhziNetygYCeIXU3gXveue2BTqwCs4vwA6LHNUKZVt8V.U8jtkcW
 ExtReference: NULL
   Privileges: Superuser
 CreationTime: 2015-08-10 11:26:10
LastLoginTime: 2015-08-10 11:53:06
1 row in set (0.00 sec)

mysql> UPDATE WP_Admin SET Password='' WHERE UserName='HostAdmin';
Query OK, 1 row affected (0.01 sec)
Rows matched: 1  Changed: 1  Warnings: 0

mysql> quit
Bye

Now you can enter a new password for the HostAdmin user via the login page as outlined above, by clicking the Change Password link, but leaving the Password field empty and only entering the new password twice, followed by clicking the Login and Change Password button.

How to Enable Two-Factor Authentication

Two-factor authentication (2FA) can be enabled at two different levels:

  • 2FA for the Web Portal Administrators
  • 2FA for the users of the Web Portal

How to enable two-factor authentication for administrators is described in the section below (Enabling Two-Factor Authentication for Administrators).

Two-factor authentication (2FA) for the Web Portal users requires the Registration Server version 3.6 or later. 2FA is implemented by the Registration Server using the Google Authenticator App (https://support.google.com/accounts/answer/1066447?hl=en).

To enable 2FA for users, set AuthServiceEnabled to True, and leave the associated settings: AuthLoginPageURL, AuthTokenVerifyURL and RegistrationURL blank.

As described in System Settings, these settings default to login and registration pages provided by the Web Portal. The Web Portal pages redirect to the associated pages provided by the Registration Server.

On the Registration Server the pages, can be optionally customised using the template system. The templates to be modified are: portal-login, portal-lost-pwd, portal-register, portal-activate, portal-login-ok, portal-goog-auth-setup, portal-goog-auth-login, and portal-goog-auth-login-ok.

If you would like to allow users to register directly via the Web Portal, then set RegistrationEnabled to True.

In order to setup two-factor authentication, users must be directed to the page:

https://webportal.yourdomain.com/portal/setup-2fa.html

This page provides instructions of how to configure Google Authentication for the user’s account.

Note

Please check the apache ssl.conf for the additional RewriteRule in case you updated from WebPortal 1.0.5 to a newer version:

RewriteRule ^/portal(.*)$ /yvva/portal$1 [PT]

See Configure mod_ssl for details.

On the Registration Server you must add the domain name of the Web Portal (as specified by WebPortalDomain) to Provider setting API_WEB_PORTAL_IP. Modify this setting by adding the domain name on a line beneath the IP Address of the Web Portal which you have already set (as described in Associating the Web Portal with a Provider).

If the Web Portal is used by several Providers, only modify the API_WEB_PORTAL_IP setting of one of the Providers. This will be the default Provider for users that register directly via the Web Portal.

Enabling Two-Factor Authentication for Administrators

The Web Portal Administration Console supports two-factor authentication via email. In this mode, an administrator with “Superuser” privileges that logs-in with his username and password must provide an additional authentication code that will be sent to him via email during the login process. This feature is disabled by default.

The TeamDrive Web Portal needs to be configured to send out these authentication email messages via SMTP. The Web Portal is only capable of sending out email using plain SMTP via TCP port 25 to a local or remote MTA.

If your remote MTA requires some form of encryption or authentication, you need to set up a local MTA that acts as a relay. See chapter Installing the Postfix MTA in the TeamDrive Web Portal Installation Guide for details.

Before you can enable two-factor authentication, you need to set up and verify the Web Portal’s email configuration. This can be accomplished via the Host Server’s Administration Console. You need to log in with a user account having “Superuser” privileges in order to conclude this step.

Click Setup / Test Email to open the server’s email configuration page.

../_images/WebPortalEmailSetup.png

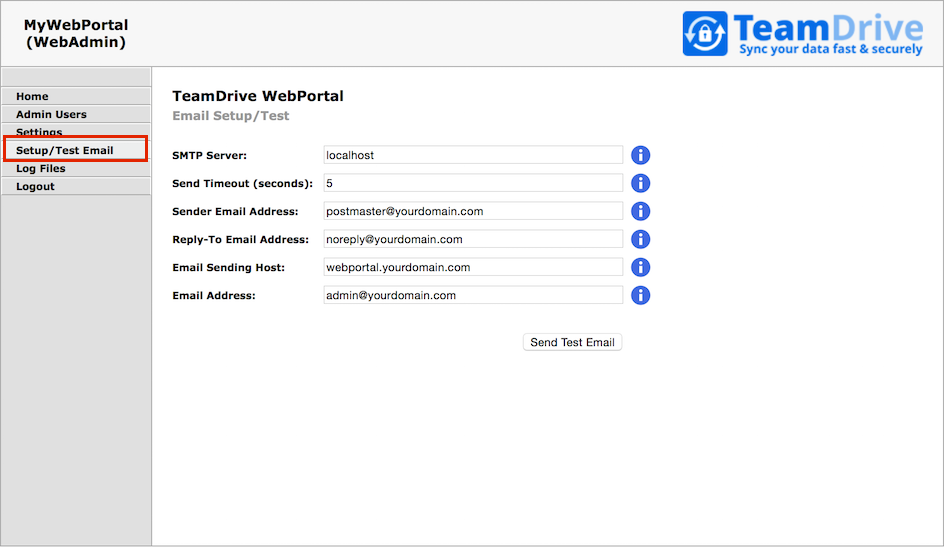

Web Portal Admin Console: Email Setup / Test

Fill out the fields to match your local environment:

SMTP Server:
The host name of the SMTP server accepting outgoing email via plain SMTP. Choose localhost if you have set up a local relay server.
Send Timout:
The timeout (in seconds) that the mail sending code should wait for a delivery confirmation from the remote MTA.
Sender Email Address:
The email address used as the Sender email address during the SMTP delivery, e.g. postmaster@yourdomain.com. This address is also known as the “envelope address” and must be a valid email address that can accept SMTP-related messages (e.g. bounce messages).
Reply-To Email Address:
The email address used as the “From:” header in outgoing email messages. Depending on your requirements, this can simply be a “noreply” address, or an email address for your ticket system, e.g. support@yourdomain.com.
Email Sending Host:
The host name used in the HELO SMTP command, usually your Web Portal’s fully qualified domain name.
Email Address:
The primary administrator’s email address. This address is the default recipient for all emails that don’t have an explicit receiving address. During the email setup process, a confirmation email will be sent to this address.

After you’ve entered the appropriate values, click Send Test Email to verify the email setup. If there is any communication error with the configured MTA, an error message will be printed. Check your configuration and the MTA’s log files (e.g. /var/log/maillog of the local Postfix instance) for hints.

If the configuration is correct and functional, a confirmation email will be delivered to the email address you provided. It contains an URL that you need to click in order to commit your configuration changes. After clicking the URL, you will see a web page that confirms your changes.

This concludes the basic email configuration of the Web Portal. Now you can enable the two-factor authentication by clicking Settings -> UseTwoFactorAuth. Change the setting’s value from False to True and click Save to apply the modification.

../_images/WebPortalTwoFactorAuthConfig.png

Web Portal Admin Console: Use Two-Factor Authentication

Now two-factor authentication for the Administration Console has been enabled.

The next time you log in as a user with “Superuser” privileges, entering the username and password will ask you to enter a random secret code, which will be sent to you via email to the email address associated with your administrator account. Enter the code provdided into the input field Authentication Code to conclude the login process.

Changing the MySQL Database Connection Information

The Web Portal Apache module mod_yvva as well as the yvvad daemon that performs the td-webportal background tasks need to be able to communicate with the MySQL management database of the Web Portal.

If you want to change the password of the teamdrive user or move the MySQL database to a different host, the following changes need to be performed.

To change the MySQL login credentials, edit the file /etc/td-webportal.my.cnf. The password for the teamdrive MySQL user in the [tdweb] option group must match the one you defined earlier:

[tdweb]
database=webportal
user=teamdrive
password=<password>
host=127.0.0.1

If the MySQL database is located on a different host, make sure to modify the host variable as well, providing the host name or IP address of the host that provides the MySQL service. If required, the TCP port can be changed from the default port (3306) to any other value by adding a port=<port> option.

Configuring Active Directory / LDAP Authentication Services

If the TeamDrive users of the Web Portal are using an external Authentication Service such as Active Directory or LDAP, then the Web Portal must also be configured to use the authentication service.

Note

This section refers to the login of the TeamDrive users as apposed to the administrators of the Web Portal, which is described in the section: Administrator Login using External Authentication below.

This is done by setting AuthServiceEnabled to True, and then setting the correct values for AuthLoginPageURL and AuthTokenVerifyURL. A Web Portal may only be connected to a single Authentication Service.

Note

Once external authentication service has been activation, it is no longer possible to use the Web Portal for regular login of users. This is because the user will always be redirected to the AuthLoginPageURL page.

Please refer to Configuring External Authentication using Microsoft Active Directory / LDAP in the TeamDrive Registration Server Administration Guide for details of how to setup an External authentication service. In this document we describe only the aspects that are relevant to the Web Portal.

In particular, you must set $webportal_domain value in the ldap_config.php page (Registration Server 3.6).

Once you have setup LDAP or Active Directory authentication for the Registration Server it is a simple step to enable this service for the Web Portal. The page “ldap_web_login.php” has been provided for this purpose.

Set AuthLoginPageURL to the URL of the “ldap_web_login.php” page. This URL is now the login page for the Web Portal, and the user will be automatically directed to this page if he is not already logged in.

The AuthTokenVerifyURL setting must be set to the “ldap_verify.php” page provided by the Active Directory / LDAP authentication implementation for the Registration Server.

Once these parameters are set correctly, and the necessary changes have been made to “ldap_web_login.php”, login using the Active Directory / ldap service should work correctly. If the login fails, first check the /var/log/td-webportal.log log file for errors.

Administrator Login using External Authentication

The Administration Console of the Web Portal may use External Authentication such as LDAP or Active Directory. If the administrators of the Web Portal are stored and managed by such a service then it is possible to have the user credentials checked by the server, rather than stored and checked by the Web Portal database.

There are two system settings that control this behaviour: ExtAuthEnabled and ExtAuthURL. ExtAuthEnabled must be set to True. ExtAuthURL specifies a URL that will perform the external authentication.

On login, if external authentication is enabled, the Web Portal will perform a HTTP POST to the URL specified by ExtAuthURL, passing two parameters: username and password. The page is expected to return an XML reply of the following form:

<?xml version='1.0' encoding='UTF-8'?>
<teamdrive>
<user>
<id>unique-user-id</id>
<email>users-email-address</email>
</user>
</teamdrive>

If an error occurs, for example an “Incorrect login”, then the ExtAuthURL page must return:

<?xml version='1.0' encoding='UTF-8'?>
<teamdrive>
<error>
<message>error-message-here</message>
</error>
</teamdrive>

Such a page can be easily implemented in PHP, for instance. An example implementation of the ExtAuthURL page for LDAP and Active Directory is available upon request from TeamDrive Systems (please contact sales@teamdrive.com).

System Settings

Select the Settings item from the menu in order to obtain a list of all system settings available for the Web Portal.

../_images/WebPortalSettings.png

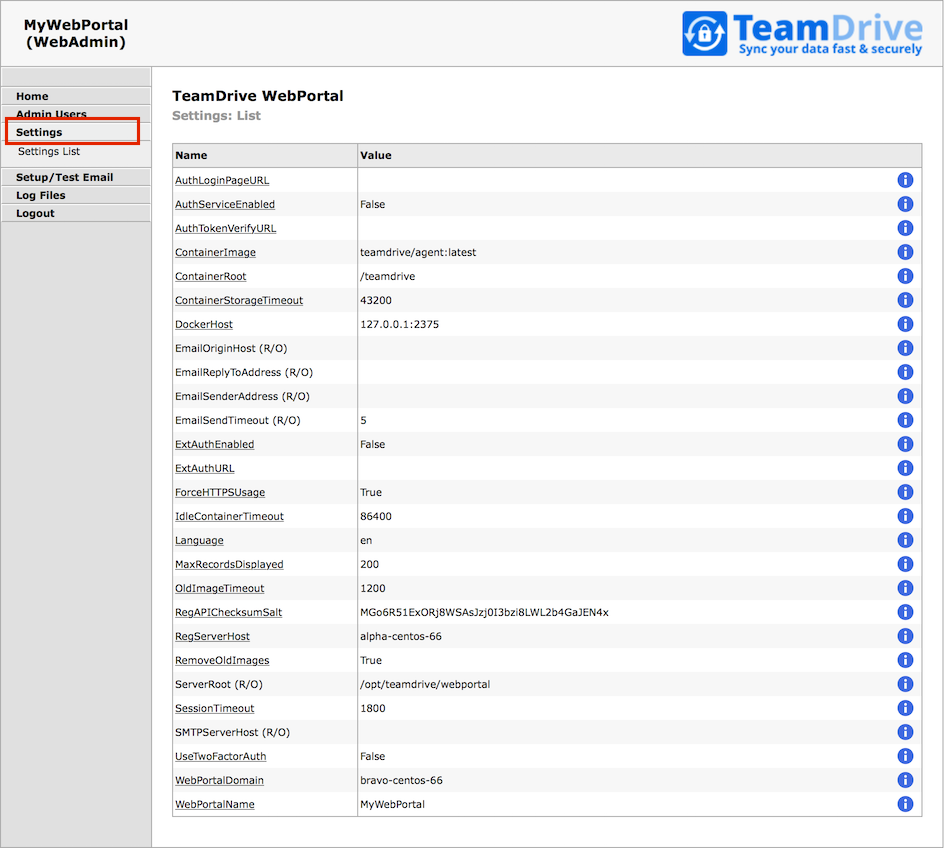

Web Portal Admin Console: Settings

This section describe the various settings and how they can be used to configure the Web Portal.

  • SessionTimeout: This is the idle time in seconds after which you are required to login to the Web Portal Admin Console again.
  • WebPortalDomain: This is the domain name (or URL) of this service.
  • WebPortalName: This name of this service. The name is displayed in the Web Portal Admin Console. The default value is the domain name of the service. The name is used for display purposes only, and may be set to any value.
  • UseTwoFactorAuth: Set to True to enable two-factor authentication for Superusers.

    Note that this setting only applies to the user of the Web Portal Admin Console. The setting has nothing to do with the use of two-facter authentication used by the users of the portal. This is described in the section: How to Enable Two-Factor Authentication.

  • AllowedProviders: This is a list of Provider codes of the users that may login to the Portal. If empty, any user may login to the Portal.

  • ServerRoot: The installation directory of the Web Portal application.

  • ForceHTTPSUsage: Set to True if the Web Portal Admin Console must be accessed using HTTPS.

  • MaxRecordsDisplayed: This setting determines the maximum number of records that may be retrieved from the database at any time. This parameter may only be changed by a Superuser.

  • ExtAuthEnabled: Set this value to True to enable External Authentication. See Administrator Login using External Authentication for details.

  • ExtAuthURL: This is the URL that is used by the Web Portal to verify the login of an Administrator, when using External Authentication. See Administrator Login using External Authentication for details.

  • AuthServiceEnabled: Set this value to True to enable an Authentication Service for the TeamDrive users. This means that the users that access the Web Portal are required to login using an external login page. See Configuring Active Directory / LDAP Authentication Services for details.

  • AuthLoginPageURL: This is URL of the Authentication Service login page which must be used by TeamDrive users that are registered by the external Authentication Service. See Configuring Active Directory / LDAP Authentication Services for details.

    By default, this URL is set to Web Portal login page: https://webportal.yourdomain.com/portal/login.html. This page redirects to the equivalent on the Registration Server. The Web Portal Login page, if used, allows a user to Two-factor authentication using the Google Authenticator App.

    Two-factor authentication can be setup using the page: https://webportal.yourdomain.com/portal/setup-2fa.html

  • AuthTokenVerifyURL: This URL is used to verify the token returned by the Authentication Service after success login by a TeamDrive user. See Configuring Active Directory / LDAP Authentication Services for details.

    BY default, this setting is set to the Web Portal verification URL: https://webportal.yourdomain.com/portal/verify.html

  • SMTPServerHost: Domain name (and port) of the SMTP server used to send emails. See Enabling Two-Factor Authentication for Administrators for details.

  • EmailSendTimeout: Timeout in seconds, when sending an email. See Enabling Two-Factor Authentication for Administrators for details.

  • EmailSenderAddress: The email address of the sender. This address is not directly visible to the email receiver. If an email bounces, a message will be sent to this address. See Enabling Two-Factor Authentication for Administrators for details.

  • EmailReplyToAddress: This is the email address that will appear in the Reply-To header of the email, and will be used by the email client if the user attempts to reply to emails sent by the Web Portal. See Enabling Two-Factor Authentication for Administrators for details.

  • EmailOriginHost: Specify the domain of the origin host, for emails sent by the server. See Enabling Two-Factor Authentication for Administrators for details.

  • EmailSettingsToConfirm: A hash of the email settings that need to be confirmed before saving. See Enabling Two-Factor Authentication for Administrators for details.

  • RegistrationEnabled: Set to True if you want to allow users to register directly From the Web Portal. By default this value is set to False.

    The setting RegistrationURL specifies the URL that provides the registration page (see below). When RegistrationEnabled is set to True the TeamDrive Agent Web-GUI provides a “Register now” button which references this page specified by RegistrationURL, in the login dialog.

    Registration Server 3.6 or later provides a default registration page that is customisable. In this case it is not necessary to set RegistrationURL. Instead you may use the Registration Server templating system to customise the registration page if required.

    If you are using an external Authentication Service then this value should be set to False unless you provide a custom registration page. Setting this value to False while using the standard TeamDrive Registration service, means that users are required to the TeamDrive Client to Register.

  • DockerHost: This is the host name and port of the Docker daemon which runs the containers. See Installing Docker for details.

  • ContainerImage: This is the name of the image that must be used when creating a new container. See Upgrading the Docker Container Image for details.

    Note that if the MinimumAgentVersion specifies a TeamDrive agent version that is higher than the version of the Agent specified by ContainerImage, then the container image used will be determined by MinimumAgentVersion.

  • ContainerRoot: This is the absolute path that reference the directory in which all containers will create the user data.

  • ContainerStorageTimeout: This is the time, in minutes, that an container must be idle before its storage is removed. Zero means that the container storage is never deleted. See Upgrading the Docker Container Image for details.

  • IdleContainerTimeout: This is the time, in seconds, that a container must be idle before it is removed. Zero means that containers are never removed. See Upgrading the Docker Container Image for details.

  • RemoveOldImages: Set to True if containers running an old image (i.e. not equal to ContainerImage) should be removed. See Upgrading the Docker Container Image for details.

  • OldImageTimeout: This is the time, in seconds, that a container with an old image must be idle before it is removed. Zero means the container is removed, even if it is running. Note, if RemoveOldImages is False, this setting is ignored. See Upgrading the Docker Container Image for details.

  • OldImageRemovalTime: Use this setting to specify when containers with old images should be removed. You can set it to “now”, to remove the containers immediately, if set to “never”, then containers are only removed if the OldImageTimeout is exceeded. This value can also be set to a time (e.g. 03:00, format: hh:mm), or a date (format YYYY-MM-DD hh:mm). Note, if RemoveOldImages is False, this setting is ignored. See Upgrading the Docker Container Image for details.

  • MinimumAgentVersion: This setting is specifies the minimum TeamDrive Agent version that is required by the Web Portal. The setting may not be modified. If The current image used by containers has a Agent version that is earlier than MinimumAgentVersion, then upgrade of the containers will be forced by the Web Portal. This means that users may experience a spontaneous logout.

    Following upgrade, ContainerImage will be set to the required image.

  • RegServerHost: This is the domain name of the Registration Server. See Activating the Web Portal for details.

    Before you can set RegServerHost you may have to set RegAPIChecksumSalt to blank (the empty string) if the current value of RegAPIChecksumSalt does not match the Registration Server.

    After changing RegServerHost you can then set RegAPIChecksumSalt correctly. This is necessary because the Web Portal will attempt to verify the Registration Server connection and will fail if RegAPIChecksumSalt is set to an incorrect value.

  • RegAPIChecksumSalt: This is the Registration Server API salt. It is required to authorise access to the Registration Server’s API. See Activating the Web Portal for details.

    Before you can change``RegAPIChecksumSalt`` you may have to set RegServerHost to blank (the empty string), if it references a server that does not math the new RegAPIChecksumSalt value.

    After changing RegAPIChecksumSalt you can then set RegServerHost correctly.

  • RegistrationURL: This URL references a Web-page where a user can register as a TeamDrive user. Alternatively, if an external authentication Service is being used this page can allow users to register with this service.

    This page will only be used of RegistrationEnabled is set to True. In this case the TeamDrive Agent Web-GUI provides a “Register now” button which references this page specified by RegistrationURL, in the login dialog.

    By default, this page is set to Web Portal register page: https://webportal.yourdomain.com/portal/register.html. This page redirects to the equivalent on the Registration Server.

Web Portal Backup Considerations

The extent to which backup and failover is performed depends entirely on the service level you wish to provide.

In order to secure the configuration of the Web Portal, you must make a backup of the webportal MySQL database. Loss of the database will require a complete re-install of the Web Portal.

Quick recovery from failure of the Web Portal can be provided by replicating the webportal database to a standby machine.

You should also ensure that you have a backup of all the configuration files describe here: List of relevant configuration files. However, these files are rarely changed after the initial setup.

A standby Docker host is also recommended if a high level of availability is required. If the contents of the ContainerRoot is lost due to disk failure, or failure of the Docker host, users will have to re-enter their Spaces after they log into the Web Portal again. The only data that will be lost in this case are files that were being uploaded when the failure occurred, All other Space data is stored by the TeamDrive Hosting Service, and can be recovered from there.

In order to ensure a high level of availability, a standby Docker host may be used, and the contents of the ContainerRoot path can be copied to the standby system using rsync. Alternatives depend on the type of volume mounted at ContainerRoot. If the file system has sufficient redundancy and can be mounted by the standby system at any time, Then no further consideration are required.

Note that it is not necessary to make a backup of Docker containers, as these are automatically re-created when a user logs in.

Setting up Server Monitoring

It’s highly recommended to set up some kind of system monitoring, to receive notifications in case of any critical conditions or failures.

Since the TeamDrive Web Portal is based on standard Linux components like the Apache HTTP Server and the MySQL database, almost any system monitoring solution can be used to monitor the health of these services.

We recommend using Nagios or a derivative like Icinga or Centreon. Other well-established monitoring systems like Zabbix or Munin will also work. Most of these offer standard checks to monitor CPU usage, memory utilization, disk space and other critical server parameters.

In addition to these basic system parameters, the existence and operational status of the following services/processes should be monitored:

Scaling a TeamDrive Web Portal Setup

When scaling the TeamDrive Web Portal we consider each component individually. There are four components that are relevant to this discussion: the Apache Web server, the Docker host, the MySQL Database and the Load Balancer.

The simplest configuration places all components on one machine. This is the case which is largely described in this document. In this case, the Apache Web server also fulfills the function of the Load Balancer. This is done by re-write rules which direct calls from the Web client to The associated Docker container.

Even in the case of a small scale setup, we recommend placing the Docker host on a separate system. This makes it easier to manage the resources required by Docker and the TeamDrive Agent running in the containers.

Apache Web Server

The Apache Web server host is responsible for the management of the Web Portal. This includes: the Login page, the Administration Console and the background tasks.

The scaling requirements of this component are relatively limited as the task do not require much resources in terms of CPU, memory or disk space.

This means that a “scale-up” of the Apache Web server host is probably quite sufficient to cope with a growing number of users.

Nevertheless, if the Web Portal access patterns require it, or simply to add redundancy it is possible to scale-out the Apache Web server, by adding additional machines that run the identical Web Portal software.

In this case a Load Balancer is required to distribute requests to the various Apache hosts. This can be done on a simple round-robin basis or according to current load since the connections are stateless.

The Web Portal service which runs the various background task should be started on all Apache hosts.

The MySQL Database must also be moved to a separate system. See below for more details.

MySQL Database

Load on the database, and the volume of data is minimal on the Web Portal. For this reason, it should suffice to place the MySQL database on a dedicated server as the load increases on the Web Portal. Additional CPU’s and memory can then be added to this system as required.

As mentioned above, if the Apache Web server is scaled out, then it is necessary to place the MySQL database on a separate system even if this is not required for load reasons. If this is not done then the MySQL database can remain on the same system as The Apache Web server.

Docker Service

The specific hardware requirements of the system running the Docker service are describe here: Hardware Requirements. In this section we discuss the issues involved in scaling out the Docker service.

Depending in the usage patterns you will find it necessary to begin scale-out of the Docker service when the number of Users exceeds about 1000. In other words, a working estimate is that the Web Portal requires appropriately one Docker host per 1000 users.

A requirement for scale-out of the Docker system is software that manages a cluster of Docker hosts. There are a number of such tools available, including: Swarm, Shipyard, Google Kubernetes and CoreOS.

An important requirement of such systems is that they support the standard Docker API, which is used by the Web Portal. If this is the case, then the Web Portal will be able to start and manage containers in the cluster without regard to the number of hosts in the cluster.

The container storage used by a Docker cluster must be mounted by all hosts in the cluster. This means that the storage must be placed on a shared storage medium like an NFSv4 server or shared disk file systems like OCFS2 or GFS2. Note that concurrent access of the same volumen is required, but not concurrent access to the files on the volume. in other words, file locking is not an issue.

Upgrading the TeamDrive Web Portal

There are two aspects to upgrading the TeamDrive software used by the Web Portal: the Web Portal software, and the TeamDrive agent used by the Web Portal.

There is a dependency between two components because the Web Portal services the Web application that makes calls to the TeamDrive Agent. The Web Portal requires a MinimumAgentVersion and will make sure that you are running the required version of the TeamDrive Agent.

Since the TeamDrive Agent is always backwards compatible with the Web application, you are free to use a more recent version than required. How to upgrade the TeamDrive Agent is described in the following section: Upgrading the Docker Container Image.

Upgrading the TeamDrive Web Portal depends on using the standard or a white label version. Please contact TeamDrive Systems for updating the white label version. For updating the standard installation is simple using the RPM package manager:

[root\@webportal ~]# yum update td-webportal td-webportal-clientui yvvad

An update simply replaces the existing packages while the service is running, and the services (httpd and td-webportal) are automatically restarted afterwards.

Check the chapter Release Notes - Version 1.0 for the changes introduced in each new version. The release notes may also contain important notes that effect the upgrade itself.

Upgrading the Docker Container Image

The Docker container image used is stored in the ContainerImage setting and is set to the minimum required agent version by default (see MinimumAgentVersion).

This means that the container image will automatically be updated when you manually increase the ContainerImage or a newer version of the Web Portal requires a newer MinimumAgentVersion.

The upgrade of a container image cannot occur “in-place”. Instead, the old container must be removed, and a new container started which uses the new image.

During normal operation, containers are only removed when they are idle for a certain amount of time. This time is specified by the IdleContainerTimeout setting.

This means that if a container is in continuous use, then it will never by upgraded.

For this reason, a number of settings have been added to “force” upgrade of a container, even if the idle timeout is not exceeded. The settings that perform this task are RemoveOldImages, OldImageTimeout and OldImageRemovalTime.

RemoveOldImages must be set to True to enabled this functionality.

Docker container images are available from the TeamDrive public Docker repository on the docker hub. Here you will find a list of the tagged images that are available:

https://hub.docker.com/r/teamdrive/agent/tags/

You can install an image using the Docker pull command:

[root@webportal ~]# docker pull teamdrive/agent:<tag>

Where <tag> is the tag of an image, for example: 4.2.0.1470-TMDR. If you have installed the image on your Docker host, set the ContainerImage setting accordingly, for example: teamdrive/agent:4.2.0.1470-TMDR.

At this point the values of the settings OldImageTimeout and OldImageRemovalTime will take effect.

OldImageTimeout is the time, in seconds, that a container with an old image (an image other than ContainerImage) must be idle before it is removed. Zero means the container is removed immediately, even if it is running. Note, if RemoveOldImages is False, this setting is ignored.

OldImageRemovalTime specifies when containers with old images should be removed. Set this setting to a specific time of day (e.g. 03:00, format: hh:mm) or to a specific date (format YYYY-MM-DD hh:mm). This specifies the time when the upgrade will take place, which will force a running container to be removed and re-created.

If you want to force upgrade immediately, set this setting to “now”. You can disable this setting by setting it to “never”. In this case, upgrade is controlled by the OldImageRemovalTime setting.

You will find more on the upgrade process in the description of the tasks that actually perform this functions, see Background Tasks Performed by td-webportal.
