TeamDrive Http Api

Overview

The TeamDrive Agent offers a JSON interface via HTTP, which allows you to operate the TeamDrive Agent without using the GUI. The JSON interface can be activated by specifying the teamdrived --http-api-port option.

The command line application TeamDriveApi.py is located in the TeamDrive Agent installation directory (e.g. C:\Program Files (x86)\TeamDrive 3 Agent). Running this file allows you to use the TeamDrive API directly. See Options for a list of Options and Settings.

If you would like to use the TeamDrive HTTP API without Python, HTTP GET requests can be made directly through TeamDrive Agent. The URL will need to be constructed as follows:

http://<host>/api/<command>?<parameters>

For example:

http://[::1]:45454/api/getSpace?id=1

The result is a JSON document.

Requirements

In order to run use the interface, you will need the these requirements:

  • TeamDrive Desktop Client or TeamDrive Agent

The Python module and Command line interface requires

Security Considerations

Communicating with the TeamDrive Http Api contains sensitive information, for example user names, passwords and file data. There are mechanisms to provide authentication and privacy.

Restricting the availability of the Api

By restricting the api to the local host, any attempt to access the api from another host will fail:

http-api-port=127.0.0.1:<port>

Although, this does not prevent the usage of the api from another user of this system.

Using a local socket or a named pipe

One can further reduce the availability by specifying the type of the api like this:

http-api-type=socket
http-api-port=<name>

<name> can be a user defined string. The Unix socket file will be placed in /tmp on Mac OS X and on Linux.

Using HTTPS for communication with the TeamDrive Agent

HTTPS can be enabled by setting type to ssl like this:

http-api-type=ssl
http-api-port=443

It is recommended to use port 443 for communication with browsers, because using a non-standard port for HTTPS is considered insecure. Please also have a look at the teamdrived --http-api-certificate and teamdrived --http-api-private-key settings.

Note

The HTTPS server that is used by the TeamDrie Agent is based on the Qt framework, which supports, according to the documentation, the following protocols: SSLv2, SSLv3, TLSv1.0, TLSv1.1 and TLSv1.2.

Authentication

In order to prevent unauthorized users from accessing the TeamDrive Http Api, an authentication is required to access the api. There are two ways to authenticate clients:

  1. Statefull Session Cookies
  2. Stateless Authorization Header

Session Cookies

Session Cookies are mainly used to authenticate Web Browsers. Using a session requires a call to TeamDriveApi.TeamDriveApi.login() to retrieve a cookie from the server. TeamDriveApi.TeamDriveApi.getLoginInformation() can be used to determine if a login is required.

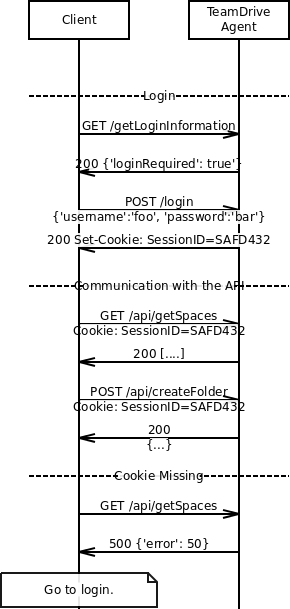

Login with the Api using Cookies should follow this protocol:

_images/protocol.png

In the case of a missing Cookie, a TeamDriveApi.TeamDriveException.Error_Missing_Session is returned

Authorization Header

This stateless alternative to Cookies uses HTTP Basic Authentication. Every request to the Api requires an Authorization Header following RFC 2617.

Currently, The Agent does not answer requests without Authentication Header appropriately. It is expected, that clients send the Authorization Header unconditionally.

Interface Overview

TeamDrive provides two API endpoints:

  • The /api endpoint provides meta data about all elements of TeamDrive
  • The /files endpoint provides an interface for reading and writing the file content.

Communicating with the /api endpoint

This is the reference documentation of the TeamDrive Client API. As a convenience, there is a Python module that provides accessor functions for each API call, which is also usable as a command line interface. Please have a look at all possible usages.

Example using curl:

$ curl '127.0.0.1:45454/api/getLoginInformation'
{ "isLoginRequired" : true }

Example using the Python module:

>>> from TeamDriveApi import TeamDriveApi
>>> api = TeamDriveApi("127.0.0.1:45454")
>>> map(api.getSpace, api.getSpaceIds())
[{.....}]

Example using the command line:

./TeamDriveApi.py '127.0.0.1:45454' getLoginInformation
{
    "username": "My Username",
    "apiUrl": "/",
    "isLoginRequired": false
}

Example Session (Initial Login):

# Start TeamDrive:
exec /opt/teamdrive/teamdrived

# Wait for it:
sleep 5

# Log-in
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass login

# Create a new Space
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass createSpace

# Call Functions
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass createFolder

# Quit TeamDrive without logout
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass quit False

Example Session:

exec /opt/teamdrive/teamdrived
sleep 5

# No need to login now
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass createFolder

# Quit TeamDrive without logout
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass quit False

Example Session (After previous Logout:

# If the previous session ended with a logout:
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass quit True

# The next call should start with a login:
exec /opt/teamdrive/teamdrived
sleep 5
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass login
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass createFolder

See also

TeamDriveApi.TeamDriveException for Errors returned by the API.

See also

Chapter Authentication regarding Authentication.

Communicating with the /files endpoint

See TeamDriveApi.TeamDriveApi.putFile() for Details.

Passing Parameters to the API

The format of parameters depend on the HTTP method:

  • Parameters for GET-requests should be passed by a query string in the url. For example curl --user myTeamDriveUser http://127.0.0.1:45454/api/getSpace?id=310
  • Parameters to POST-requests can either be a JSON object or data encoded using application/x-www-form-urlencoded.

Interface Description

TeamDriveApi.TeamDriveApi

class TeamDriveApi.TeamDriveApi(server='[::1]:45454', username='', password='')
Return type:

TeamDriveApi

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
about()

Returns information about TeamDrive.

Returns:
{
  "version": "4.0.12 (Build: 1294)",
}

Changed in version 4.1.1: no longer returns license infos. call getLicense instead.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
addAddressbook(name)

Adds a new Address book entry. TeamDrive will lookup that name on the RegServer. If that fails, an exception is thrown. You cannot add email addresses.

Using this function requires the HTTP POST method.

Parameters:

name (str) – the new Addressbook’s name.

Returns:

the id of the new entry.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – user is unknown.
  • ValueError – no JSON returned. Wrong URL?
addComment(fileId, comment, notifyMembers)

Attaches the comment to the file.

Using this function requires the HTTP POST method.

New in version 4.2.1.

Parameters:notifyMembers (bool) – Send notification to all members (default is false)

New in version 4.1.1.

Parameters:
  • fileId (int) – The corresponding id of the file
  • comment (str) – The content of the new comment
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Adding this comment failed.
  • ValueError – no JSON returned. Wrong URL?
addSpaceComment(spaceId, comment, notifyMembers)

Adds this comment to the Space.

Using this function requires the HTTP POST method.

New in version 4.2.1.

Parameters:notifyMembers (bool) – Send notification to all members (default is false)

New in version 4.1.1.

Parameters:
  • spaceId (int) – The Space id.
  • comment (str) – The content of the new comment
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Adding this comment failed
  • ValueError – no JSON returned. Wrong URL?
clearProfilePicture()

Clears the profile picture of the current user.

See also

getProfilePicture to retrieve profile pictures and setProfilePicture

New in version 4.1.1.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
commitCurrentSnapshot(spaceId)

Commit the snapshot that is currently being previewed.

The process for restoring a Space to a snapshot is as follows:

  1. ‘preview’ a snapshot by calling the joinSpace function with the ‘snapshotId’ parameter

    • The Space is reverted locally to the state stored in the snapshot, in read-only mode
    • The user can then decide whether they want to commit this change.
  2. ‘commit’ the change by calling commitCurrentSnapshot

    • The Space is reverted on the server (this affects not only files but also the members in the Space, member permissions, etc.)

While in preview-mode, you can also call joinSpace again with a different snapshot ID to preview another snapshot, or without a snapshot ID to cancel the rollback and restore the Space to its usual state.

Using this function requires the HTTP POST method.

New in version 4.3.2.

Parameters:spaceId (int) – The Space id.
Return type:bool
createBackup()

Create a backup in the local file system. To create a backup and download it, send a GET request to ‘/backup’. To import a TeamDrive backup file (‘.tdbk’), send it to ‘/backup’ via a PUT request.

Returns:A dict where the key “path” points to the file in the local filesystem.

New in version 4.3.1.

Return type:dict
createFolder(spaceId, filePath, trashed)

Creates a new folder in that Space

Example:

$ ./TeamDriveApi.py '127.0.0.1:45454' createFolder 3 '/my new folder' False
{
  "result": true,
  "file": {
        "isDir": true,
        "name": "my new folder",
        "currentVersionId": 0,
        "spaceId": 3,
        "isInFileSystem": false,
        "path": "/",
        "id": 756,
        "permissions": "rwxr-xr-x"
  }
}

See also

getFullFolderContent or getFolderContent for getting the content of this folder

New in version 4.0.

Returns:

A dict containing a File object

Parameters:
  • spaceId (int) – The Id of the Space
  • filePath (str) – The full folder path.
  • trashed (bool) – In Trash?
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
createSnapshot(spaceId)

Create a snapshot that can later be used to restore the Space (see commitCurrentSnapshot)

Using this function requires the HTTP POST method.

New in version 4.3.2.

Parameters:spaceId (int) – The Space id.
Return type:bool
createSpace(spaceName, disableFileSystem, spacePath=None, importExisting=None)

Creates a new Space with the given name.

To convert an existing folder into a TeamDrive Space, you need to set the importExisting parameter to True.

In case the url is called directly, the default for disableFileSystem is False and the spacePath is mandatory.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails.

returns:A dict containig the Id and a Space.
Parameters:
  • spaceName (str) – The Name of the new Space
  • disableFileSystem (bool) – This will disable the synchronization into the file system. TeamDrive will only synchronize meta-data if this is True.
  • spacePath (str) – File Path, in which the new Space will be created.
  • importExisting (bool) – Tells the TeamDrive Agent to import an existing directory.
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Space creation failed.
  • ValueError – no JSON returned. Wrong URL?
deleteFileFromTrash(fileId)

Deletes a file from Trash by physically deleting the file from the server. This call fails, if you do not have the rights to delete files, it is a directory or the file is not in the trash.

Using this function requires the HTTP POST method.

Example:

>>> api = TeamDriveApi()
>>> for inTrash in api.getFullFolderContent(1, "/", True):
>>>     api.deleteFileFromTrash(inTrash["id"])

Throws TeamDriveException, if the call fails.

New in version 4.0.

Parameters:

fileId (int) – The Id of the Space

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
deleteSnapshot(spaceId, snapshotId)

Delete snapshots for this Space based on the given snapshotId

Warning

This function deletes all snapshots up to and including the one specified by snapshotId

Using this function requires the HTTP POST method.

New in version 4.5.0.

Parameters:
  • spaceId (int) – The Space id.
  • snapshotId (int) – The snapshot id.
Return type:

bool

deleteSpace(id, delInFs, delOnServer, delInDB)

Deletes a Space.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails.

Parameters:
  • id (int) – The Id of the Space
  • delInFs (bool) – Delete the Space in the File System
  • delOnServer (bool) – Deletes the Space on the server. (requires Administrator rights)
  • delInDB (bool) – Deletes the Space in the local Database
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Deletion failed
  • ValueError – no JSON returned. Wrong URL?
deleteVersion(versionId)

Deletes a file version finally from the server. This call fails, may may not have the rights to delete files,

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails.

See also

getVersion

New in version 4.1.4.

Parameters:

versionId (int) – The Id of the version

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
getActivities(spaceIds=None, fromDate=None, toDate=None, searchTerm=None, typeFilter=None, userFilter=None)

Returns a list of all activities for the given space list within the date period or for the last 30 days. If hasDetails is true, a call to getActivityDetails with the given activityId will return a list of details.

Possible activity types are:

  • userInvited
  • userJoined
  • userLeft
  • userKicked
  • commentCreated
  • commentDeleted
  • spaceCommentCreated
  • spaceCommentDeleted
  • versionAdded
  • versionDeleted
  • versionPublished
  • versionUnpublished
  • versionExpired

Changed in version 4.2.0.

Added new activity types:

  • userRightsChanged
  • userProfileUserNameChanged
  • userProfileEmailChanged
  • userProfilePhoneChanged
  • userProfileMobileChanged
  • userProfileNotesChanged
  • userProfilePictureChanged
  • userProfileInitialsChanged
  • userLicenseChanged
  • userRegEmailChanged
  • spaceMaxVersionsOnServerChanged
  • spaceMetaDataChanged
  • spaceMetaDataDeleted
  • spaceDeletedOnServer
  • serverAccessSent
  • serverAccessFailedToSend
  • serverAccessReceived
  • serverAccessDeleted
  • invitationSent
  • invitationFailed
  • invitationDeclined
  • invitationReceived
  • fileAdded
  • fileRenamed
  • fileMoved
  • fileTrashed
  • fileUntrashed
  • fileDeleted
  • fileChanged
  • fileCurrentVersionChanged
  • folderAdded
  • folderRenamed
  • folderMoved
  • folderTrashed
  • folderUntrashed
  • folderDeleted
  • folderChanged
  • fileNameConflict
  • fileNameConflictResolved
  • filePathInvalid
  • filePathInvalidResolved
  • versionPublishMetaChanged
  • versionConflict
  • versionConflictResolved
  • versionExported
  • emailNotificationSent
  • emailNotificationFailedToSend
  • workingDirFull
  • runningOutOfDiskSpace
  • noDiskFreeSpace
  • automaticTrashCleanupChanged
  • temporaryError

New in version 4.1.1.

Returns:

A list of activities.

Return type:

list[dict]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?

Changed in version 4.2.0.

Parameters:
  • spaceIds (str) – A list of space IDs. If empty, all Spaces will be used.
  • fromDate (str) – ISO 8601 extended format: either YYYY-MM-DD for dates or YYYY-MM-DDTHH:mm:ss, YYYY-MM-DDTHH:mm:ssTZD (e.g., 1997-07-16T19:20:30+01:00) for combined dates and times. If empty the last 30 days will be returned.
  • toDate (str) – ISO 8601 extended format: either YYYY-MM-DD for dates or YYYY-MM-DDTHH:mm:ss, YYYY-MM-DDTHH:mm:ssTZD (e.g., 1997-07-16T19:20:30+01:00) for combined dates and times.

New in version 4.3.2.

Parameters:
  • searchTerm (str) – Search for activities that match the given string
  • typeFilter (str) – Comma-separated combination of: conflictAndError, invitationAndMember, fileAndVersion, comment, publish, all
  • userFilter (str) – one of: myUser, otherUsers, all
getActivityDetails(activityId)

Returns a list of all activity details for an activity.

See also

getActivities

New in version 4.1.1.

Parameters:

activityId (str) – The activityId as returned by getActivities

Returns:

A list of activityDetails.

Return type:

list[dict]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getActivityMetas(activityId)

Returns a list of all activity meta information for an activity.

See also

getActivities

New in version 4.2.1.

Parameters:

activityId (str) – The activityId as returned by getActivities

Returns:

A list of activityMeta.

Return type:

list[dict]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getAddressbook(id)

Returns information about a given Addressbook Id.

See also

getFullAddressbook for an example

Parameters:

id (int) – the Address Id.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getAddressbookByName(addressName)

This is convenience wrapper of the Python module that is not part of the official API.

Returns an Addressbook entry by a given user name. Throws a TeamDriveException, if there is no Space with this name.

Parameters:

addressName (str) – The Name.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveCallFailed – There is no Space with this name
  • ValueError – no JSON returned. Wrong URL?
getAddressbookIds()

Returns all knows Addressbook Ids.

Return type:

list[int]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getComments(fileId)

Returns a list of all comments that are attached to a specific file in a space.

Example

>>> api = TeamDriveApi()
>>> api.getComments(4183)
Returns:
[
  {
        "creator": "test",
        "creatorAddressId": 1,
        "text": "file baz",
        "created": "2015-09-01T15:15:31Z",
        "commentId": 16,
        "initials": "te"
  },
  {
        "creator": "test",
        "creatorAddressId": 1,
        "deleted": true,
        "created": "2015-09-01T15:15:28Z",
        "commentId": 15,
        "initials": "te"
  }
]

New in version 4.1.1.

Parameters:

fileId (int) – The corresponding id of the file

Returns:

A list of comments.

Return type:

list[dict]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getFile(id)

Returns information about the given File Id.

returns:A File object
Parameters:

id (int) – The File id

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getFiles(spaceId, filePath, trashed)

Returns a list of files matching Space Id, file path and trashed flag.

returns:A list of File objects
Parameters:
  • spaceId (int) – The Id of the Space
  • filePath (str) – the path of the file in the Space.
  • trashed (bool) – Is the file in the trash?
Return type:

list[dict]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getFolderContent(spaceId, filePath, trashed)

Returns a list of file Ids in a folder of a Space.

Example:

python ./TeamDriveApi.py '127.0.0.1:45454' getFolderContent 3 / False
[756,767,737,769,629,763,628,630,830,765]
Parameters:
  • spaceId (int) – The Id of the Space
  • filePath (str) – The parent folder path.
  • trashed (bool) – In Trash?
Return type:

list[int]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getFolderInfo(spaceId, filePath, trashed)

Returns information about the size of a folder:

{
  "files": 10,
  "size": 3288549
}

New in version 4.5.

Parameters:
  • spaceId (int) – The Id of the Space
  • filePath (str) – The parent folder path.
  • trashed (bool) – In Trash?
Return type:

list[int]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getFullAddressbook()

Returns all Addressbook entries at once.

Example:

$ python ./TeamDriveApi.py '127.0.0.1:45454' getFullAddressbook
[
  {
        "id": 1,
        "email": "info@teamdrive.net",
        "name": "My Name",
        "icon": "self"
  }
]

Note

As this function was added with TeamDrive 4, the fall back for TeamDrive 3 is to iterate over all Addressbook Ids, therefore this function is much slower.

New in version 4.0.

Return type:

list[dict]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getFullFolderContent(spaceId, filePath, trashed)

Returns a list of file information in a folder of a Space.

Example:

$ python ./TeamDriveApi.py '127.0.0.1:45454' getFullFolderContent 3 / False
[
  {
        "isDir": true,
        "name": "My folder",
        "currentVersionId": 0,
        "spaceId": 3,
        "isInFileSystem": true,
        "hasNameConflict": false,
        "hasVersionConflict": false,
        "path": "/",
        "id": 756,
        "permissions": "rwxr-xr-x"
  },
  {
        "isDir": false,
        "name": "My File",
        "currentVersionId": 0,
        "spaceId": 3,
        "isInFileSystem": true,
        "hasNameConflict": false,
        "hasVersionConflict": false,
        "path": "/",
        "id": 767,
        "permissions": "rwxr-xr-x"
  }
]

Note

As this function was added with TeamDrive 4, the fall back for TeamDrive 3 is to iterate over getFolderContent, therefore this function is much slower.

See also

getFile and getFolderContent

New in version 4.0.

Returns:

A list of File objects

Parameters:
  • spaceId (int) – The Id of the Space
  • filePath (str) – The parent folder path.
  • trashed (bool) – In Trash?
Return type:

list[dict]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getLicense()

Returns information about the current License.

Returns:
{
  "distributor": "DOCU",
  "licenseKey": "DOCU-8782-5485-7266",
  "licenses": [
        "WebDAV",
        "Professional"
  ]
}

New in version 4.1.1.

See also

setLicenseKey to set the license.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getLoginInformation()

Returns information about the current user.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getMember(spaceId, addressId)

Returns information about a member of a Space.

Example:

$ python ./TeamDriveApi.py '127.0.0.1:45454' getMember 3 1
Returns:

{
        "status": "active",
        "spaceId": 3,
        "addressId": 1
}

Parameters:
  • spaceId (int) – The Id of the Space
  • addressId (int) – Already known Addressbook Id.
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getProfilePicture(id)

Returns the profile picture of the address.

See also

setProfilePicture to set the profile picture of the current user.

New in version 4.1.1.

Parameters:

id (int) – The addressId.

Returns:

The picture.

Return type:

bytes | dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
getSettings()

Returns a list of settings, with each setting a dict. An incomplete list of settings can be found in the Options Section.

Example :

{
        "key": "identifier",
        "label": "readable label",
        "help": "help text",
        "type": "string|path|integer|bool|enum|bitmask",
        "value": "current value",
        "options": ["enum option 1", "enum option 2"],
        "flags": [{bit: <bit flag>, label: "readable label"}, ...]
}

setSetting can be used to set a specific setting.

Return type:

list

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getSnapshots(spaceId)

Get snapshots that can later be used to restore the Space (see commitCurrentSnapshot)

New in version 4.3.2.

Return type:list[dict]
getSpace(id)

Will return information about that Space.

See also

getSpaceStatistics for statistics.

Example using Python:

>>> api = TeamDriveApi()
>>> map(api.getSpace, api.getSpaceIds())
{.....}

Example using curl:

curl --user myTeamDriveUser http://127.0.0.1:45454/api/getSpace?id=310

        :returns: A single :ref:`space-json-data-type`.
Parameters:

id (int) – The Id of the Space

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getSpaceByName(spaceName)

This is convenience wrapper of the Python module that is not part of the official API.

Returns a Space by a given Space name. Throws a TeamDriveException, if there is no Space with this name.

Parameters:

spaceName (str | unicode) – The Name.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveCallFailed – There is no Space with this name
  • ValueError – no JSON returned. Wrong URL?
getSpaceComments(spaceId)

Returns a list of all comments that are attached to the Space itself.

Example

>>> api = TeamDriveApi()
>>> api.getSpaceComments(13)
Returns:
[
  {
        "creator": "test",
        "creatorAddressId": 1,
        "text": "file baz",
        "created": "2015-09-01T15:15:31Z",
        "commentId": 16,
        "initials": "te"
  },
  {
        "creator": "test",
        "creatorAddressId": 1,
        "deleted": true,
        "created": "2015-09-01T15:15:28Z",
        "commentId": 15,
        "initials": "te"
  }
]

New in version 4.1.1.

Parameters:

spaceId (int) – The Space id.

Returns:

A list of comments.

Return type:

list[dict]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getSpaceIds()

Returns a list of all known Spaces Ids.

Example:

>>> api = TeamDriveApi()
>>> api.getSpaceIds()
[1,4,5,6]
Return type:

list[int]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getSpaceMemberIds(spaceId)

Returns all Addressbook Ids in a given Space.

Example:

$ python ./TeamDriveApi.py '127.0.0.1:45454' getSpaceMemberIds 3
[1,2]

New in version 4.0.

Deprecated since version 4.1.1: Use getSpaceMembers instead.

Return type:

list[int]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getSpaceMembers(spaceId)

Returns all Member infos in a given Space.

New in version 4.1.

Return type:

list[dict]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getSpacePermissionLevels()

Get a list of possible space permission “levels” (ie. read, read/write, admin, etc.) and their capabilities. Permission levels are returned in order of increasing “magnitude”. The reply of this call is constant and won’t change until the agent is restarted.

Returns:
[
        {
                "id": "none",
                "name: "None",
                "rights": {
                                "memberInvite": False,
                                "memberKick": False,
                                "memberSetRights": False,
                                "spaceRename": False,
                                "spaceDeleteOnServer": False,
                                "filePublish": False,
                                "fileDeleteOnServer": False,
                                "fileRename": False,
                                "fileRestoreFromTrash": False,
                                "fileChange": False
                                }
        },
        {
                "id": "read",
                "name": "Read"
                "rights": { ... }
        },
        ...
]

New in version 4.1.1.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getSpaceSettings(spaceId)

Get space-specific settings.

New in version 4.1.2.

Parameters:spaceId (int) – The Space id.
Return type:dict
getSpaceStatistics(id)

Returns Space statistics

New in version 4.1.1.

See also

getSpace, getSpaces for other information.

Parameters:

id (int) – The Id of the Space

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getSpaces()

Returns a list of all known Spaces.

Note

As this function was added with TeamDrive 4, the fall back for TeamDrive 3 is to iterate over all Space Ids, therefore this function is much slower.

See also

getSpaceStatistics for statistics.

returns:A list of Space objects, for example
[
  {
        "name": "My Space",
        "creator": "$TMDR-1007",
        "icon": "archived",
        "status": "archived",
        "status_message": "Space Archived",
        "id": 1,
        "spaceRoot": "/home/teamdrive/Spaces/My Space",
        "time": "2015-09-15T11:17:48Z",
        "permissionLevel": "read"
  },
  {
        "name": "Api",
        "creator": "...",
        "spaceRoot": "/home/teamdrive/Spaces/Api",
        "icon": "space",
        "status": "active",
        "status_message": "OK",
        "id": 8,
        "fileId": 1,
        "time": "2015-09-15T11:17:48Z",
        "permissionLevel": "readWrite"
  }
]

New in version 4.0.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getVersion(versionId)

Returns a single version.

>>> versionId = 42
>>> TeamDriveApi().getVersion(versionId)["versionId"] == versionId

New in version 4.1.4.

Parameters:

versionId (int) – the id of the version

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
getVersions(fileId)

Returns all versions of a file.

New in version 4.1.4.

Return type:

list[dict]

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
importSpaceKeys()

Import Space keys from the server (ie. Spaces that have been deleted locally will re-appear as inactive Spaces, if the key-repository backup was enabled)

Returns:A dict where the key “spacesImported” contains the number of imported Spaces.

New in version 4.3.1.

Return type:dict
inviteMember(spaceId, addressId, text, permissionLevel=None, password=None, name=None)

Invites a user into a Space. If no addressId is given, and ‘name’ is set to the email address of someone who doesn’t have an account yet, they will get an email inviting them to join TeamDrive.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails.

Parameters:
  • spaceId (int) – The Id of the Space
  • addressId (int | None) – Already known Addressbook Id (optional if a name is provided)
  • text (str) – Invitation Text
  • name (str | None) – Username or an email address (required if no addressId is given)
  • permissionLevel (str | None) –

    The new user permission Level. Optional.

    New in version 4.1.1.

  • password (str | None) –

    Optional. The password for the invitation.

    New in version 4.1.1.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Inviting that member failed
  • ValueError – no JSON returned. Wrong URL?
joinSpace(id, disableFileSystem, spacePath=None, password=None, backupPath=None, fullRestore=None, snapshotId=0)

Accepts an invitation, joins an archived Space or rejoins an active one.

Note: Password protected Invitations:
Invitations may be protected by a password and accepting these invitations require the password parameter.If an invitation is password protected, getSpace adds "isPasswordProtected": true to the reply.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails.

Parameters:
  • id (int) – The Id of the Space
  • disableFileSystem (bool) – This will disable the synchronization into the file system. TeamDrive will only synchronize meta-data if this is True.
  • spacePath (str | None) – Optional, Space root in the file system.
  • password (str | None) –

    Optional, Password for accepting this invitation.

    New in version 4.1.1.

  • backupPath (str) –

    An optional backup path in case the space already exists in the file system.

    New in version 4.2.1.

  • fullRestore (bool) –

    Do a full restore of the space.

    New in version 4.2.1.

  • snapshotId (int) –

    Do a preview-mode rollback of the Space to this snapshot (see commitCurrentSnapshot)

    New in version 4.3.2.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Joining failed
  • ValueError – no JSON returned. Wrong URL?
kickMember(spaceId, addressId)

Removes a member form this Space.

Removing a member from a Space will not remove this user from getSpaceMemberIds, but will set a this member to status “kicked” in getMember.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails. For example, if the one doesn’t have the rights to remove a user

New in version 4.0.

Parameters:
  • spaceId (int) – The Id of the Space
  • addressId (int) – Already known Addressbook Id.
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Removing this user failed
  • ValueError – no JSON returned. Wrong URL?
lockFile(fileId)

Lock a file. Throws TeamDriveException, if the call fails.

New in version 4.2.1.

Parameters:

fileId (int) – The Id of the File

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
login()

A TeamDrive Client installation is bound to a single TeamDrive account. Calling login authenticates TeamDrive user and creates a new device. this is typically the first call to an Agent.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails.

Example as Command line:

./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass login

Example with Curl:

curl 'https://127.0.0.1:45454/login' --data-binary '{"username":"My User","password":"My Password"}'

Example:

>>> api = TeamDriveApi("127.0.0.1:45454", "My Username", "My Password")
>>> api.login()

Note

On the desktop client, this call is not available, as the API will not be available until the user has successfully logged in. This is a technical limitation of the Gui Client.

See also

Chapter Authentication regarding Authentication.

Parameters:
  • username (str) – The Username
  • password (str) – The Password
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Logging failed.
  • ValueError – no JSON returned. Wrong URL?
moveFile(spaceId, *args)

Either moveFile(self, spaceId, filePath, trashed, newFilePath) or moveFile(self, spaceId, fileId, newFilePath) Moves a file from filePath or fileId to newFilePath in the given Space.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails.

Parameters:
  • spaceId (int) – The Id of the Space
  • filePath (str) – the path of the file in the Space.
  • trashed (int) – Is the file in the trash?
  • fileId – fileIf of the file meing moved
  • newFilePath (str) – The destination file path.
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
performExternalAuthentication(authToken)

Login using an external authentication token. The registration server must be configured to validate the token, refer the chapter “External Authentication” in the “TeamDrive Registration Server Reference Guide” for details.

Parameters:

authToken (str) – The token generated by the authentication service

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Login failed.
publishFile(fileId, password=None, expiryDate=None)

Publishes the recent version of that file. The parameters password and expiryDate are optional. Throws TeamDriveException, if the call fails.

New in version 4.1.

Parameters:
  • fileId (int) – The Id of the File
  • password (str) – Is the file in the trash?
  • expiryDate (str) – ISO 8601 extended format: either YYYY-MM-DD for dates or YYYY-MM-DDTHH:mm:ss, YYYY-MM-DDTHH:mm:ssTZD (e.g., 1997-07-16T19:20:30+01:00) for combined dates and times.
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
putFile(spaceId, path, data)

This is a Python specific accessor to the “files” API. The files API is another API endpoint to handle file content instead of meta data. Urls used by the files API are generated by concatenating the API endpoint files/ plus the local Space Id (eg. 3) plus the full file path relative to the Space root (eg. /my/path/to/the/file). Such a url could look like this: http://127.0.0.1:45454/files/3/my/path/to/the/file. This API does not support reading and writing files that are in the trash.

This Uploads a file into a Space. The file creation is done asynchronously, a successful return code does not indicate a successful upload to the Server. Use getFiles to request the current state of that file.

Example using telnet:

telnet 127.0.0.1 45454
PUT /files/3/testfile HTTP/1.1
Host: 127.0.0.1:45454
Accept-Encoding: identity
Content-Length: 4

test

Example using curl:

echo "test" | curl -X PUT -d @- http://127.0.0.1:45454/files/3/testfile
Returns:a dict containgng a File object
{
  "file": {
        "confirmed": false,
        "creator": "local",
        "currentVersionId": 6156,
        "hasComments": false,
        "icon": "default",
        "id": 7195,
        "isDir": false,
        "name": "testfile",
        "path": "/",
        "permissions": "rw-rw-r--",
        "size": 4,
        "spaceId": 3,
        "time": "2015-10-22T14:09:45"
  },
  "result": true
}

Note

In TeamDrive 3, this API endpoint was called /webdav.

Parameters:
  • spaceId (int) – The Id of the Space
  • path (str) – the path of the file in the Space.
  • data – The binary data
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
putFileContent(spaceId, spacePath, filePath)

Note

This is not part of the HTTP API. See putFile instead.

Example:

$ python ./TeamDriveApi.py '127.0.0.1:45454' putFileContent 3 /testfile ./testfile
Parameters:
  • spaceId (int) – The Id of the Space
  • spacePath (str) – the path of the file in the Space.
  • filePath (str) – the path to the local file
Return type:

dict

Raises:

httplib.HTTPException – a Connection Error.

quit(logout)

Quits TeamDrive.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails.

Parameters:

logout (bool) – Quit and also log out the current user. See login to log in afterwards.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
removeComment(commentId)

Marks this comment as “removed”

Using this function requires the HTTP POST method.

New in version 4.1.1.

Parameters:

commentId (int) – The id of the comment that will be deleted.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Removing this comment failed
  • ValueError – no JSON returned. Wrong URL?
removeLocallyFile(id, recursive=False)

Removes a file form the local file system by disabling the offline-available flag, but does not move this file into the trash or removes the file from the Space. This operation is not synchronized to other clients.

A successful return code does not indicate a successful execution, because it is done asynchronously.

Using this function requires the HTTP POST method.

Parameters:
  • id (int) – the file to be removed
  • recursive (bool) – Directories only: recursive remove
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
requestResetPassword(username)

This call will reset the password of the user.

New in version 4.1.1.

Parameters:

username (str) – The Username

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Logging failed.
  • ValueError – no JSON returned. Wrong URL?
resolveVersionConflict(versionId)

Changes the current version of a file to this version and resolves all version conflicts on this file.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails.

New in version 4.1.4.

Parameters:

versionId (int) – The Id of the version

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
restoreLocallyFile(id, recursive=False)

Restores a file form the local file system. A successful return code does not indicate a successful execution, because it is done asynchronously. This operation is not synchronized to other clients.

Using this function requires the HTTP POST method.

Parameters:
  • id (int) – the file to be restored
  • recursive (bool) – Directories only: recursive restore
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
sendSupportRequest(contactName, contactEmail, contactTel, description, sendLogs)

Uploads a support request to the server (see the Client Log Files chapter in the Registration server documentation on how to configure log uploads)

New in version 4.5.

Parameters:
  • contactName (str | None) –
  • contactEmail (str | None) –
  • contactTel (str | None) –
  • description (str | None) – Description of the problem
  • sendLogs (bool | None) – Whether or not to attach log files (true if not specified)
Return type:

dict

setAccountEmail(email)

Sets the account e-mail.

Using this function requires the HTTP POST method.

Returns True, if the license key was successfully changed otherwise raises TeamDriveException Exception

See also

setLicenseKey to set the license key.

New in version 4.1.1.

Parameters:

email (str) – The new e-mail address

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
  • TeamDriveException – Failed to set email.
setCurrentVersion(versionId)

Changes the current version of a file to this version.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails.

See also

getVersion

New in version 4.1.4.

Parameters:

versionId (int) – The Id of the version

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
setLicenseKey(licenseKey)

Overwrite the license key of this agent.

Using this function requires the HTTP POST method.

Returns True, if the license key was successfully changed otherwise raises TeamDriveException Exception

See also

setAccountEmail to set the registration e-mail address. getLicense to retrieve license infos.

Parameters:

licenseKey (str) – The new license key

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
setMemberPermissionLevel(spaceId, addressId, permissionLevel)

Changes the permission level of another member.

Using this function requires the HTTP POST method.

Throws TeamDriveException, if the call fails. For example, if the one doesn’t have the rights to remove a user

New in version 4.1.1.

Parameters:
  • spaceId (int) – The Id of the Space
  • addressId (int) – Already known Addressbook Id.
  • permissionLevel (str) – the new permission level
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Removing this user failed
  • ValueError – no JSON returned. Wrong URL?
setProfileInfo(email=None, phone=None, mobile=None)

Sets profile information of the current user.

See also

setProfilePicture to set the profile picture.

New in version 4.1.1.

Parameters:
  • email (str | None) – Optional, the new e-mail.
  • phone (str | None) – Optional, the new phone number.
  • mobile (str | None) – Optional, the new mobile number.
Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
setProfilePicture(data)

Sets the profile picture of the current user.

See also

getProfilePicture to retrieve profile pictures and clearProfilePicture to clear the picture.

New in version 4.1.1.

Parameters:

data (bytes) – The blob.

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
setSetting(key, value)

Set a Setting. must be a valid key as in getSettings. An incomplete list of settings can be found in the Options Section.

Using this function requires the HTTP POST method.

Parameters:
  • key (str) – The name of the setting
  • value – The new value of the setting
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
setSpacePath(spaceId, localPath)

Set the root path for a Space in the local file system. This can be used to move a Space to a new location, or to resolve a “Space root not found error” (eg. when a local folder name has changed and TeamDrive can no longer find the Space).

Note

Because this function affects the file system, it can only be called from the host that the API is running on (calling it from elsewhere will result in an “Unknown function” error).

Using this function requires the HTTP POST method.

New in version 4.5.

Parameters:
  • spaceId (int) – The Space id.
  • localPath (str) – New root folder for the Space
Return type:

dict

setSpaceSetting(spaceId, key, value)

set a Space Setting. must be a valid key as in getSpaceSettings.

Using this function requires the HTTP POST method.

New in version 4.1.2.

Parameters:
  • spaceId (int) – The Space id.
  • key (str) – The name of the setting
  • value – The new value of the setting
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
setSpaceSyncEnabled(spaceId, enabled)

Enable/disable synchronization for a Space

Using this function requires the HTTP POST method.

New in version 4.5.

Parameters:
  • spaceId (int) – The Space id.
  • enabled (bool) – Whether to enable synchronization
Return type:

dict

setTrashed(fileId, inTrash)

Moves a file into or out of the trash. Trashing a file also removes the file from the local file system.

Throws TeamDriveException, if the call fails.

Call deleteFileFromTrash to delete the file physically afterwards.

New in version 4.0.

Parameters:
  • fileId (int) – The Id of the Space
  • inTrash (bool) – Is the file in the trash?
Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
sse()

This is the Server Side Events api listening on /sse. This API sends events according to the Server Side Events specification.

The implementation of the python wrapper requires Python 3.

Example Usage:

$ python3 TeamDriveApi.py '127.0.0.1:45454' sse
data: { "event" : "FileEntryChanged", "fileId" : 0, "hasConflict" : 0, "isDir" :
                false, "isTrashed" : false, "name" : "my file", "path" :
                "/home/teamdrive/Spaces/My Space", "spaceId" : 3, "synced" : true }

data: { "event" : "SpaceModified", "spaceId" : 3 }

Possible Event types are: FileEntryChanged, VersionEntryChanged, FileVersionPublished, FileVersionUnpublished and SpaceModified

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • ValueError – no JSON returned. Wrong URL?
unlockFile(fileId)

Lock a file. Throws TeamDriveException, if the call fails.

New in version 4.2.1.

Parameters:

fileId (int) – The Id of the File

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
unpublishFile(fileId)

Unpublishes the file. Throws TeamDriveException, if the call fails.

New in version 4.1.

Parameters:

fileId (int) – The Id of the File

Return type:

dict

Raises:
  • httplib.HTTPException – a Connection Error.
  • socket.error – a Connection Error.
  • ConnectionRefusedError – a Connection Error.
  • TeamDriveException – Failed to queue command.
  • ValueError – no JSON returned. Wrong URL?
zipCancel(spaceId, path)

Cancel/clean up a zip-folder task, see zipFolder

Note

This is not an API function, just a python wrapper for the ‘zip’ endpoint, see zipFolder

New in version 4.5.

Parameters:
  • spaceId (int) – The Id of the Space
  • path (str) – the path of the folder in the Space.
Return type:

dict

zipDownload(spaceId, path)

Download the result archive of a zip-folder task, see zipFolder

Note

This is not an API function, just a python wrapper for the ‘zip’ endpoint, see zipFolder

New in version 4.5.

Parameters:
  • spaceId (int) – The Id of the Space
  • path (str) – the path of the folder in the Space.
zipFolder(spaceId, path, recursive)

This is a Python specific accessor to the “zip” API which can be used to download a .zip archive of a folder. Because downloading, zipping, and returning the archive can take a long time depending on the size of the folder, this process is broken up into several steps:

  1. POST to <api endpoint>/zip[Recursive]/<space id><folder path>

    This will start the process of downloading the neccessary files and zipping them. As indicated above, use .../zipRecursive/... to include subfolders in the archive, or .../zip/... to only include the top level

  2. GET to <api endpoint>/zipProgress/<space id><folder path>

    Use this request to poll the status of the task. Returns a json object like:

    {
            "totalFiles": 100,
            "filesZipped": 50,
            "status": "status text",
            "isDone": false
    }

  3. GET <api endpoint>/zip/<space id><folder path>

    Downloads the finished archive

  4. DELETE <api endpoint>/zip/<space id><folder path>

    This will clean up resources for this job on the server, and cancel the job if is still running.

New in version 4.5.

Parameters:
  • spaceId (int) – The Id of the Space
  • path (str) – the path of the folder in the Space.
  • recursive (bool) – whether to recursively zip subfolders
Return type:

dict

zipProgress(spaceId, path)

Get the status of a running zip-folder task, see zipFolder

Note

This is not an API function, just a python wrapper for the ‘zip’ endpoint, see zipFolder

New in version 4.5.

Parameters:
  • spaceId (int) – The Id of the Space
  • path (str) – the path of the folder in the Space.
Return type:

dict

TeamDriveApi.TeamDriveException

class TeamDriveApi.TeamDriveException(name, result)

In case of an error, the TeamDrive API returns a specific JSON document. Thy python Module will parse this error.

Example using curl:

curl -s '127.0.0.1:45454/api/getSpaces'
{
  "error": 50,
  "error_message": "CJsonApi::ApiError (Error_Missing_Session)",
  "result": false,
  "status_code": 500
}

Example using the command line:

$ ./TeamDriveApi.py '127.0.0.1:45454' getSpaces
Traceback (most recent call last):
  File "./TeamDriveApi.py", line 1178, in <module>
        main()
  File "./TeamDriveApi.py", line 1174, in main
        result = (getattr(TeamDriveApi, command)(api, *params))
  File "./TeamDriveApi.py", line 307, in getSpaces
        return self._call("getSpaces")
  File "./TeamDriveApi.py", line 204, in _call
        return self._call(name, params, method)
  File "./TeamDriveApi.py", line 205, in _call
        raise TeamDriveException(name, jsonRes)
__main__.TeamDriveException: Call getSpaces failed with {u'status_code': 500, u'error_message': u'CJsonApi::ApiError (Error_Missing_Session)', u'result': False, u'error': 50}
Error_HTTP_Method_Not_Allowed = 2
Error_Insufficient_Rights = 30
Error_Internal_Error = 1
Error_Invalid_File_Key = 43
Error_Invalid_Parameter = 21
Error_Missing_Parameter = 20
Error_Missing_Session = 50

No or invalid credentials supplied.

See also

Chapter Authentication.

Error_Unknown_AddressId = 42
Error_Unknown_Error = 3
Error_Unknown_Space = 40
Error_Unknown_User = 41
Error_Wrong_Login = 51
getError()

The TeamDrive API Exception code :rtype: int

getErrorString()

A human readable version of this error :rtype: str

getStatusCode()

The HTTP status code of this exception. :rtype: int

Common JSON Data Types

The API returns common data types encoded in JSON objects for different API functions. This section provides an overview of some of these data types.

Space

This JSON object describes meta information about a single Space.

Member Description
id Id of the Space. Used to identify a specific Space
fileId FileId of the root-folder in this Space. Only present for active Spaces
name Name of the Space
spaceRoot Local path to the Space.
invitor Invitations only: User name who created the invitation.
creator User name who created the Space
icon Space icon.
status Status of the Space.
status_message Describes the current status of this Space.
hasTrashedFiles Has trashed files in the Space.
isPasswordProtected Invitations only: This invitation needs a password. Obmitted if false.
time Datetime of the last modification of this Space.
text Invitation comment
permissionLevel Permission level of the current user in this Space. (Not for invitations)
hasComments Space has comments. (Not for invitations)
newComments Amount of new comments in the Space. (Not for invitations)
isOfflineAvailable “true”, if the Space will be synchronized to the local file system. TeamDrive will only synchronize meta-data if this is false (Not for invitations)

Example:

{
        "name": "Api",
        "creator": "...",
        "spaceRoot": "/home/teamdrive/Spaces/Api",
        "icon": "space",
        "status": "active",
        "status_message": "OK",
        "id": 8,
        "fileId": 1
}

File

This JSON object describes meta information about a single File or diretory.

Member Description
name File or Folder Name
id Local Id. Mainly used as parameter.
spaceId Space Id of the file.
path Path to the file excluding the name.
currentVersionId Version id that should be in the file system
isDir Boolean value. true for directories.
hasNameConflict File or Folder has a name conflict
hasVersionConflict File has a version conflict
permissions Unix permissions
creator User name of the file creator.
created file creation time. (Files only)
icon icon name based on the file extension. (Files only)
confirmed The current version is synchronized to the server. (Files only)
size The size in bytes of the current version. (Files only)
time file creation time. (Files only)
lastModified Last modification time. (Files only)
publicUrl URL to the file if it is published. (Files only)
hasComments Boolean value. (Files only)
isLockedByMe Boolean value. (Files only)
isLockedByOther Boolean value. (Files only)
trasher User name who deleted the file. (Files only)
trashed deletion time. (Files only)

Example:

{
    "isDir": true,
    "name": "My folder",
    "currentVersionId": 0,
    "spaceId": 3,
    "isInFileSystem": true,
    "path": "/",
    "id": 756,
    "permissions": "rwxr-xr-x"
}

Addressbook Entry

This JSON object describes meta information about a addressbook entry.

Member Description
id Addressbook entry Id
name User display name
email Registration Email
profile Profile information
initials User’s initials

Where Profile information is a JSON object containing:

Member Description
email Display Email
phone Phone number
mobile Mobile nuber
hasProfilePicture Boolean value. true for User’s with profile picture.
