Introduction

This manual will guide you through the installation of your TeamDrive Agent. This document is intended for system administrators and users, who need to install and configure a TeamDrive Agent.

This Installation Guide outlines the deployment of a stand alone TeamDrive Agent, which is not part of a Web Portal.

Overview

The TeamDrive Agent is a full featured TeamDrive Client without a graphical user interface. An Agent provides:

  • Synchronization of Spaces with the Cloud.
  • Synchronization of Spaces with a local file system.
  • Synchronization of Spaces with a remote file system.
  • Management GUI using a Web App.
  • API access using JSON calls.

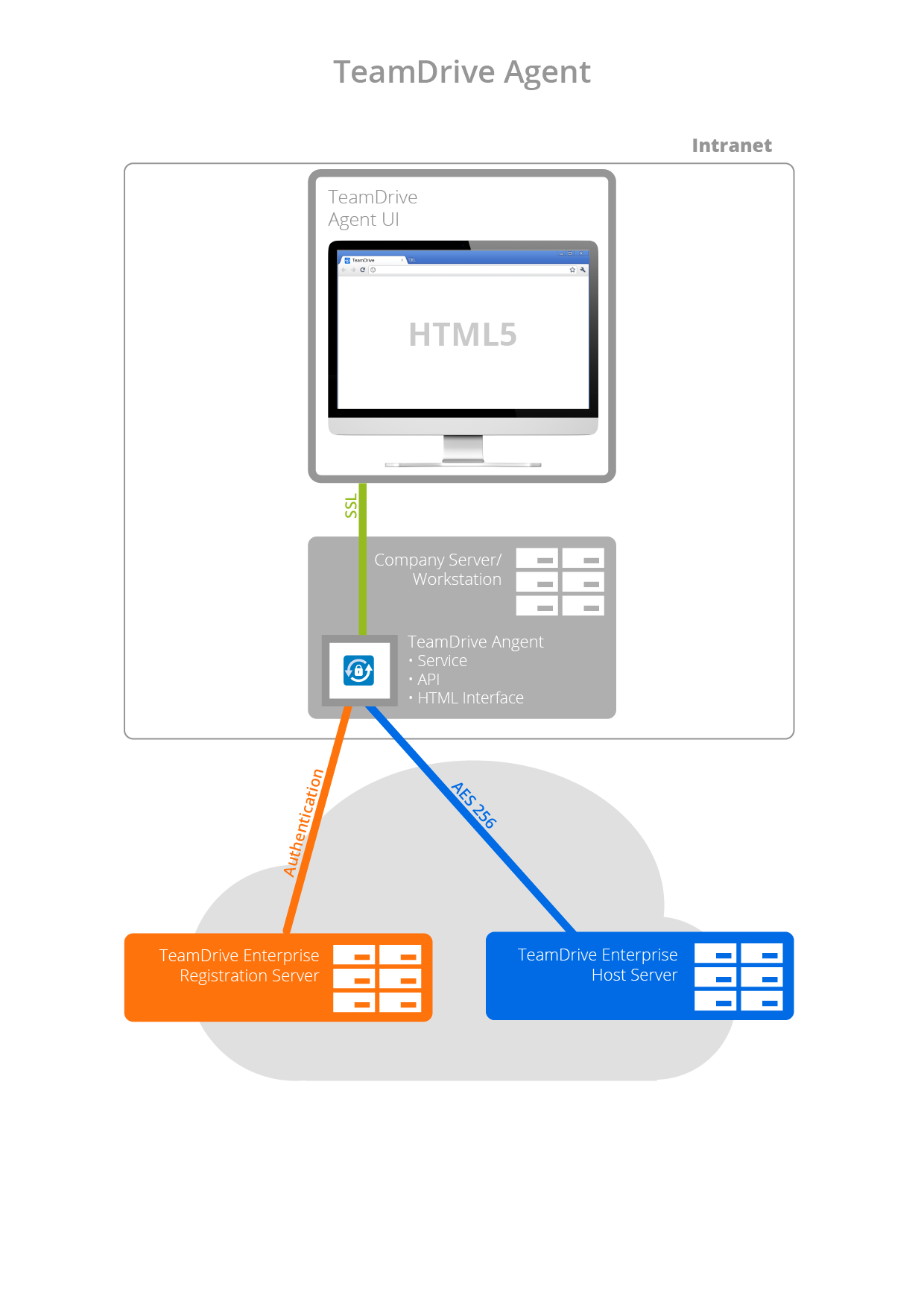

This figure shows an overview of a TeamDrive Agent installation:

_images/TD_Agent.png

Typically, a TeamDrive Agent is installed on a server or network attached storage and communicates with the TeamDrive Cloud.

Windows Installation

Requirements

The TeamDrive Agent allows a TeamDrive Windows client to be installed and run as a Windows service. The TeamDrive Agent can be run without a GUI and allows data to be synchronized in the background, even when a Windows user is not currently logged in.

The support of older Windows versions has been dropped. The minimum supported Windows version is Windows 7 or Windows Server 2009.

In order to install the TeamDrive Agent, you will need at least 50 MB of free disk space, a valid email address and Internet access. In the end, the total amount of disk space used will depend on the size of your created and/or joined Spaces.

If it is your first time installing and using TeamDrive you will need to create a TeamDrive account before installing the TeamDrive Agent. TeamDrive cannot be used without an account.

Required Skills

When installing the TeamDrive Agent, we assume that you have basic knowledge of:

  • Starting and stopping of Windows Services
  • Configuration of a firewall

Installation

After you have successfully downloaded the TeamDrive Agent, double-click the installation file to start the installation.

Note

In order to install the TeamDrive Agent on a Windows terminal server, you need to put the server into a special installation mode by executing Change user /install at a command prompt.

  1. To install the TeamDrive Agent, please specify an installation directory as seen in the following screen shot. We recommend not changing the installation directory to another location, as using the default directory will help with future version upgrades.

    _images/win-install-1.png
  2. Afterwards, you can choose to install a Windows Explorer integration which provides some context menu entries and overlay icons that show the current synchronization status of Spaces, folders and files:

    _images/win-install-2.png
  3. In order to administer the TeamDrive Agent, you will need to specify a TCP port. This port will be used to provide an administration interface using your web browser. You can choose another port number, but further examples in this document will use the port 45454:

    _images/win-install-3.png
  4. During the installation, the TeamDrive Agent will be registered as a Windows service under the name “TeamDrive Agent Client”. Please be aware that the Windows user logged in at the time of the TeamDrive Agent Client’s installation is automatically associated with this Windows service. Only this Windows user will be able to access the settings file of the TeamDrive Agent.

Post-Installation Tasks

To be able to synchronize files with the TeamDrive Agent, some initial steps are required.

  1. Open the Windows services overview (e.g. on Windows 8 “Control Panel” → “Administrative Tools” → “Services”).

  2. Please start the Windows service “TeamDrive Agent Client”:

    _images/win-install-4.png
  3. Open your browser and go to http://localhost:45454. Please replace the port with the one that was used during installation:

    _images/win-install-5.png

You can now activate Spaces in the administration interface. Your TeamDrive Spaces will now be synchronized in the background.

Changing the Windows User Account

If at some point you wish to change which Windows user you would like to use to manage the TeamDrive Agent, you simply need to edit the configuration file “teamdrive.ini”.

You can navigate to the file using “%ProgramData%” → “TeamDrive3” → “teamdrive.ini” or simply C:\ProgramData\TeamDrive3\teamdrive.ini. Open the file with a text editor, locate the entry “teamdrive-home-agent=” and replace the old Windows user account with the new desired Windows user account in the given file path. Here is an example of a typical teamdrive.ini that was created by the installer:

[Settings]
teamdrive-home-agent=C:/Users/teamdrive/AppData/Roaming/TeamDrive3
http-api-port-agent=45454
shell-extension-user-agent=teamdrive

Please also look at the documentation of teamdrived --teamdrive-home, teamdrived --http-api-port and Platform specific Settings.

The setting shell-extension-user-agent must be set to the same Windows username as in the teamdrive-home setting.

Afterwards, please continue with Post-Installation Tasks.

Accessing Network Shares

In order to access Spaces on network shares, the Windows account needs to be changed to a user, who has rights to access network shares. It is recommended to use the Windows account used to install the TeamDrive Agent.

Note

the TeamDrive Agent running as a Windows Services may not be able to access mapped network dries. It is recommended to use a UNC path directly as a Space root.

Linux Installation

At the moment, you can either use the 64 bit RPM package or the 64 bit .tar.gz file.

Requirements

The Library Dependencies are moderate and should be provided by all recent linux distributions:

Library Version
GLibc 2.9
GLibc++ 3.4.11
libz

Under Linux, TeamDrive is using the inotify [1] API of the Linux kernel to be notified about file modifications. Under some Linux distributions, there is a rather small limit regarding the number of files that can be watched. You can find out the current watch handle limit by executing cat /proc/sys/fs/inotify/max_user_watches in a terminal. If this number is lower than the number of files in your Spaces, please increase this value by adding for example fs.inotify.max_user_watches=100000 to your /etc/sysctl.conf file. Please reboot your system afterwards.

[1]http://man7.org/linux/man-pages/man7/inotify.7.html

Installation on RPM based Distributions

If you are on a RPM based distribution, please install the TeamDrive Agent by installing the rpm file.

The TeamDrive Agent is hosted on a dedicated yum repository. This makes the installation and applying of future updates very easy — you can simply run yum update to keep your TeamDrive Agent up to date.

To enable the repository, you need to download the td-agent.repo file and place it into the directory /etc/yum.repos.d/, e.g. by using wget:

[root@agent ~]# wget -O /etc/yum.repos.d/td-agent.repo \
http://repo.teamdrive.net/td-agent.repo

This will enable the “TeamDrive Agent Version 4” repository, which you can check by running yum repolist afterwards:

[root@agent ~]# yum repolist
Loaded plugins: security
repo id            repo name                                 status
td-agent-4         TeamDrive Agent Version 4                 4
base               CentOS-6 - Base                           6.367
extras             CentOS-6 - Extras                         14
updates            CentOS-6 - Updates                        1.094
repolist: 7.477

To install the TeamDrive Agent, install the following package via yum from the “TeamDrive Agent” repository:

[root@agent ~]# yum install teamdrive-Agent

Please continue with Starting and Stopping.

Installation on other Distributions

To install the TeamDrive Agent on a non-RPM based distribution, please download the Agent manually for example by using wget:

wget http://s3download.teamdrive.net.s3.amazonaws.com/4.<version>/TMDR/linux-x86_64/TeamDrive_Agent_4.<version>_x86_64.tar.gz

Please replace <version> with the latest release. Now, please extract the TeamDrive Agent:

tar -xvzf TeamDrive_Agent_4.<version>_x86_64.tar.gz

This will extract the TeamDrive Agent into a subdirectory TeamDrive.

Note

The tar.gz file does not register a teamdrive-Agent command on your system.

Starting and Stopping

Before starting the TeamDrive Agent for the first time, please also read Initial Set-Up.

Please start TeamDrive by using the shortcut in your desktop menu or bar. Alternatively, you can execute the global command “teamdrive-Agent” or ”./teamdrived” from the installation folder. TeamDrive requires some system settings that are not available by executing the teamdrived.bin executable directly.

Note

Running TeamDrive as root is not recommended. TeamDrive runs perfectly without privileges.

To stop the TeamDrive Agent, please execute:

/opt/teamdrive/TeamDriveApi.py '<agent-host>:<port>' quit False

Replace <agent-host> with the host where your TeamDrive Agent is installed and the port with the one you specified.

Initial Set-Up

To administrate your TeamDrive Agent, you need to enable the HTTP API by setting the teamdrived --http-api-port option either as a command line argument or as a setting.

Then start the TeamDrive Agent, open your favorite browser and go to http://<agent-host>:45454. Replace <agent-host> with the host where your TeamDrive Agent is installed and the port with the one you specified. Log-in to your TeamDrive account now.

Performance Consideration

The TeamDrive Agent is typically used to synchronize data on a central server. These are some guidelines to optimize the performance of the TeamDrive Agent in this situation:

  1. Do not mount the file system over the network, which contains the data that will be synchronized. Network shares are much slower than local file systems. Using a network share will limit the number of files and directories per Space.
  2. Use more than one TeamDrive Space. Using more than one Space can increase the performance. For example, you could have one Space per project or team.

Migrating from TeamDrive 3

The application data directory (specified by the teamdrived --teamdrive-home parameter) is compatible to TeamDrive 3.

  1. Perform a full system backup in order to be able to restore your system if you encounter unexpected errors.
  2. Shutdown the TeamDrive 3 Agent.
  3. Install the new TeamDrive 4 Agent as described, but do not start the TeamDrive Agent.
  4. Make sure that you have only one installation of the TeamDrive Agent. Manually delete older TeamDrive 3 installations in case they are not automatically deleted.
  5. Start the TeamDrive 4 Agent. See Initial Set-Up.

Warning

On Windows, the uninstall.exe will delete the application data directory. Be careful when removing old installations.

Troubleshooting

TeamDrive stores log output to %APPDATA%\TeamDrive3\logs or ~/.teamdrive/logs. Please search for [Critical] messages that can be a hint to an error.

TeamDrive Agent is started, but administration interface is not available (Linux)

If you are not able to access the administration interface in you browser, please check that TeamDrive has opened a TCP port:

[root@agent ~] netstat -twaunp

Please edit the settings file and set TeamDrive to open the port 45454. This can be done by editing the file ~/.teamdrive/teamdrive.settings file. This is an example:

[root@agent ~] vim ~/.teamdrive/teamdrive.settings

Add the following entries:

[Settings]
http-api-type=tcp
http-api-port=45454

Restart TeamDrive with the following commands:

[root@agent ~] killall teamdrived.bin
# Wait 10 seconds
[root@agent ~] ./teamdrived
