TeamDrive Http Api¶
Overview¶
The TeamDrive Agent offers a JSON interface via HTTP, which allows you to operate
the TeamDrive Agent without using the GUI. The JSON interface can be activated by specifying the teamdrived --http-api-port
option.
The command line application TeamDriveApi.py is located in the TeamDrive Agent installation directory (e.g. C:\Program Files (x86)\TeamDrive 3 Agent). Running this file allows you to use the TeamDrive API directly. See Options for a list of Options and Settings.
If you would like to use the TeamDrive HTTP API without Python, HTTP GET requests can be made directly through TeamDrive Agent. The URL will need to be constructed as follows:
http://<host>/api/<command>?<parameters>
For example:
http://[::1]:45454/api/getSpace?id=1
The result is a JSON document.
Requirements¶
In order to run use the interface, you will need the these requirements:
- TeamDrive Desktop Client or TeamDrive Agent
The Python module and Command line interface
requires
- Python in your PATH variable.
- Recommended: docopt for Python.
TeamDriveApi.TeamDriveApi.sse()
requires Python 3.
Security Considerations¶
Communicating with the TeamDrive Http Api contains sensitive information, for example user names, passwords and file data. There are mechanisms to provide authentication and privacy.
Restricting the availability of the Api¶
By restricting the api to the local host, any attempt to access the api from another host will fail:
http-api-port=127.0.0.1:<port>
Although, this does not prevent the usage of the api from another user of this system.
Using a local socket or a named pipe¶
One can further reduce the availability by specifying the type of the api like this:
http-api-type=socket
http-api-port=<name>
<name> can be a user defined string. The Unix socket file will be placed in /tmp on Mac OS X and on Linux.
Using HTTPS for communication with the TeamDrive Agent¶
HTTPS can be enabled by setting type to ssl like this:
http-api-type=ssl
http-api-port=443
It is recommended to use port 443 for communication with browsers, because using a non-standard port for HTTPS
is considered insecure. Please also have a look at the teamdrived --http-api-certificate
and teamdrived --http-api-private-key
settings.
Note
The HTTPS server that is used by the TeamDrie Agent is based on the Qt framework, which supports, according to the
documentation, the following protocols:
SSLv2
, SSLv3
, TLSv1.0
, TLSv1.1
and TLSv1.2
.
Authentication¶
In order to prevent unauthorized users from accessing the TeamDrive Http Api, an authentication is required to access the api. There are two ways to authenticate clients:
- Statefull Session Cookies
- Stateless Authorization Header
Session Cookies¶
Session Cookies are mainly used to authenticate Web Browsers. Using a session requires a call to
TeamDriveApi.TeamDriveApi.login()
to retrieve a cookie from the server. TeamDriveApi.TeamDriveApi.getLoginInformation()
can be used to determine if a login is required.

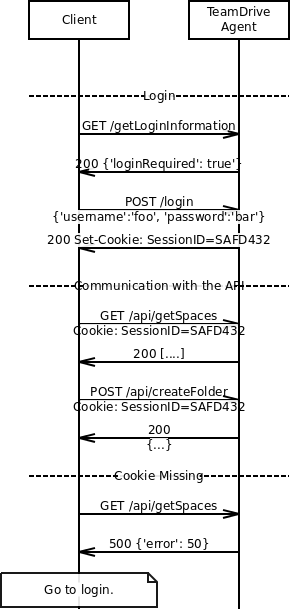

Login with the Api using Cookies should follow this protocol:
In the case of a missing Cookie, a TeamDriveApi.TeamDriveException.Error_Missing_Session
is returned
Authorization Header¶
This stateless alternative to Cookies uses HTTP Basic Authentication. Every request to the Api requires an Authorization Header following RFC 2617.
Currently, The Agent does not answer requests without Authentication Header appropriately. It is expected, that clients send the Authorization Header unconditionally.
Interface Overview¶
TeamDrive provides two API endpoints:
- The
/api
endpoint provides meta data about all elements of TeamDrive - The
/files
endpoint provides an interface for reading and writing the file content.
Communicating with the /api endpoint¶
This is the reference documentation of the TeamDrive Client API. As a convenience, there is a Python module that provides accessor functions for each API call, which is also usable as a command line interface. Please have a look at all possible usages.
Example using curl:
$ curl '127.0.0.1:45454/api/getLoginInformation'
{ "isLoginRequired" : true }
Example using the Python module:
>>> from TeamDriveApi import TeamDriveApi
>>> api = TeamDriveApi("127.0.0.1:45454")
>>> map(api.getSpace, api.getSpaceIds())
[{.....}]
Example using the command line:
./TeamDriveApi.py '127.0.0.1:45454' getLoginInformation
{
"username": "My Username",
"apiUrl": "/",
"isLoginRequired": false
}
Example Session (Initial Login):
# Start TeamDrive:
exec /opt/teamdrive/teamdrived
# Wait for it:
sleep 5
# Log-in
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass login
# Create a new Space
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass createSpace
# Call Functions
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass createFolder
# Quit TeamDrive without logout
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass quit False
Example Session:
exec /opt/teamdrive/teamdrived
sleep 5
# No need to login now
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass createFolder
# Quit TeamDrive without logout
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass quit False
Example Session (After previous Logout:
# If the previous session ended with a logout:
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass quit True
# The next call should start with a login:
exec /opt/teamdrive/teamdrived
sleep 5
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass login
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass createFolder
See also
TeamDriveApi.TeamDriveException
for Errors returned by the API.
See also
Chapter Authentication regarding Authentication.
Communicating with the /files endpoint¶
See TeamDriveApi.TeamDriveApi.putFile()
for Details.
Passing Parameters to the API¶
The format of parameters depend on the HTTP method:
- Parameters for GET-requests should be passed by a query string in the url. For example
curl --user myTeamDriveUser http://127.0.0.1:45454/api/getSpace?id=310
- Parameters to POST-requests can either be a JSON object or data encoded using
application/x-www-form-urlencoded
.
Interface Description¶
TeamDriveApi.TeamDriveApi¶
-
class
TeamDriveApi.
TeamDriveApi
(server='[::1]:45454', username='', password='')¶ Return type: Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
-
about
()¶ Returns information about TeamDrive.
Returns: { "version": "4.0.12 (Build: 1294)", }
Changed in version 4.1.1: no longer returns license infos. call
getLicense
instead.Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
addAddressbook
(name)¶ Adds a new Address book entry. TeamDrive will lookup that name on the RegServer. If that fails, an exception is thrown. You cannot add email addresses.
Using this function requires the HTTP POST method.
Parameters: name (str) – the new Addressbook’s name.
Returns: the id of the new entry.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – user is unknown.
- ValueError – no JSON returned. Wrong URL?
-
addComment
(fileId, comment, notifyMembers)¶ Attaches the comment to the file.
Using this function requires the HTTP POST method.
See also
getComments
,getSpaceComments
,addSpaceComment
andremoveComment
New in version 4.2.1.
Parameters: notifyMembers (bool) – Send notification to all members (default is false) New in version 4.1.1.
Parameters: - fileId (int) – The corresponding id of the file
- comment (str) – The content of the new comment
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Adding this comment failed.
- ValueError – no JSON returned. Wrong URL?
-
addSpaceComment
(spaceId, comment, notifyMembers)¶ Adds this comment to the Space.
Using this function requires the HTTP POST method.
See also
New in version 4.2.1.
Parameters: notifyMembers (bool) – Send notification to all members (default is false) New in version 4.1.1.
Parameters: - spaceId (int) – The Space id.
- comment (str) – The content of the new comment
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Adding this comment failed
- ValueError – no JSON returned. Wrong URL?
-
clearProfilePicture
()¶ Clears the profile picture of the current user.
See also
getProfilePicture
to retrieve profile pictures andsetProfilePicture
New in version 4.1.1.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
createFolder
(spaceId, filePath, trashed)¶ Creates a new folder in that Space
Example:
$ ./TeamDriveApi.py '127.0.0.1:45454' createFolder 3 '/my new folder' False
{ "result": true, "file": { "isDir": true, "name": "my new folder", "currentVersionId": 0, "spaceId": 3, "isInFileSystem": false, "path": "/", "id": 756, "permissions": "rwxr-xr-x" } }
See also
getFullFolderContent
orgetFolderContent
for getting the content of this folderNew in version 4.0.
Returns: A dict containing a File object
Parameters: - spaceId (int) – The Id of the Space
- filePath (str) – The full folder path.
- trashed (bool) – In Trash?
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
createSpace
(spaceName, disableFileSystem, spacePath=None, importExisting=None)¶ Creates a new Space with the given name.
To convert an existing folder into a TeamDrive Space, you need to set the importExisting parameter to True.
In case the url is called directly, the default for disableFileSystem is False and the spacePath is mandatory.
Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails.returns: A dict containig the Id and a Space. Parameters: - spaceName (str) – The Name of the new Space
- disableFileSystem (bool) – This will disable the synchronization into the file system. TeamDrive will only synchronize meta-data if this is True.
- spacePath (str) – File Path, in which the new Space will be created.
- importExisting (bool) – Tells the TeamDrive Agent to import an existing directory.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Space creation failed.
- ValueError – no JSON returned. Wrong URL?
-
deleteFileFromTrash
(fileId)¶ Deletes a file from Trash by physically deleting the file from the server. This call fails, if you do not have the rights to delete files, it is a directory or the file is not in the trash.
Using this function requires the HTTP POST method.
Example:
>>> api = TeamDriveApi() >>> for inTrash in api.getFullFolderContent(1, "/", True): >>> api.deleteFileFromTrash(inTrash["id"])
Throws
TeamDriveException
, if the call fails.See also
New in version 4.0.
Parameters: fileId (int) – The Id of the Space
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
deleteSpace
(id, delInFs, delOnServer, delInDB)¶ Deletes a Space.
Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails.Parameters: - id (int) – The Id of the Space
- delInFs (bool) – Delete the Space in the File System
- delOnServer (bool) – Deletes the Space on the server. (requires Administrator rights)
- delInDB (bool) – Deletes the Space in the local Database
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Deletion failed
- ValueError – no JSON returned. Wrong URL?
-
deleteVersion
(versionId)¶ Deletes a file version finally from the server. This call fails, may may not have the rights to delete files,
Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails.See also
New in version 4.1.4.
Parameters: versionId (int) – The Id of the version
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
getActivities
(spaceIds=None, fromDate=None, toDate=None)¶ Returns a list of all activities for the given space list within the date period or for in the last 30 days. If
hasDetails
istrue
, a call togetActivityDetails
with the given activityId will return a list of details.Possible activity types are:
userInvited
userJoined
userLeft
userKicked
commentCreated
commentDeleted
spaceCommentCreated
spaceCommentDeleted
versionAdded
versionDeleted
versionPublished
versionUnpublished
versionExpired
Changed in version 4.2.0.
Added new activity types:
userRightsChanged
userProfileUserNameChanged
userProfileEmailChanged
userProfilePhoneChanged
userProfileMobileChanged
userProfileNotesChanged
userProfilePictureChanged
userProfileInitialsChanged
userLicenseChanged
userRegEmailChanged
spaceMaxVersionsOnServerChanged
spaceMetaDataChanged
spaceMetaDataDeleted
spaceDeletedOnServer
serverAccessSent
serverAccessFailedToSend
serverAccessReceived
serverAccessDeleted
invitationSent
invitationFailed
invitationDeclined
invitationReceived
fileAdded
fileRenamed
fileMoved
fileTrashed
fileUntrashed
fileDeleted
fileChanged
fileCurrentVersionChanged
folderAdded
folderRenamed
folderMoved
folderTrashed
folderUntrashed
folderDeleted
folderChanged
fileNameConflict
fileNameConflictResolved
filePathInvalid
filePathInvalidResolved
versionPublishMetaChanged
versionConflict
versionConflictResolved
versionExported
emailNotificationSent
emailNotificationFailedToSend
workingDirFull
runningOutOfDiskSpace
noDiskFreeSpace
automaticTrashCleanupChanged
temporaryError
See also
New in version 4.1.1.
Returns: A list of activities.
Return type: list[dict]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
Changed in version 4.2.0.
Parameters: - spaceIds (str) – A list of space IDs. If empty, all Spaces will be used.
- fromDate (str) – ISO 8601 extended format: either YYYY-MM-DD for dates or YYYY-MM-DDTHH:mm:ss, YYYY-MM-DDTHH:mm:ssTZD (e.g., 1997-07-16T19:20:30+01:00) for combined dates and times. If empty the last 30 days will be returned.
- toDate (str) – ISO 8601 extended format: either YYYY-MM-DD for dates or YYYY-MM-DDTHH:mm:ss, YYYY-MM-DDTHH:mm:ssTZD (e.g., 1997-07-16T19:20:30+01:00) for combined dates and times.
-
getActivityDetails
(activityId)¶ Returns a list of all activity details for an activity.
See also
New in version 4.1.1.
Parameters: activityId (str) – The activityId as returned by
getActivities
Returns: A list of activityDetails.
Return type: list[dict]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getActivityMetas
(activityId)¶ Returns a list of all activity meta information for an activity.
See also
New in version 4.2.1.
Parameters: activityId (str) – The activityId as returned by
getActivities
Returns: A list of activityMeta.
Return type: list[dict]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getAddressbook
(id)¶ Returns information about a given Addressbook Id.
See also
getFullAddressbook
for an exampleParameters: id (int) – the Address Id.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getAddressbookByName
(addressName)¶ This is convenience wrapper of the Python module that is not part of the official API.
Returns an Addressbook entry by a given user name. Throws a TeamDriveException, if there is no Space with this name.
Parameters: addressName (str) – The Name.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveCallFailed – There is no Space with this name
- ValueError – no JSON returned. Wrong URL?
-
getAddressbookIds
()¶ Returns all knows Addressbook Ids.
Return type: list[int]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getComments
(fileId)¶ Returns a list of all comments that are attached to a specific file in a space.
Example
>>> api = TeamDriveApi() >>> api.getComments(4183)
Returns: [ { "creator": "test", "creatorAddressId": 1, "text": "file baz", "created": "2015-09-01T15:15:31Z", "commentId": 16, "initials": "te" }, { "creator": "test", "creatorAddressId": 1, "deleted": true, "created": "2015-09-01T15:15:28Z", "commentId": 15, "initials": "te" } ]
See also
getSpaceComments
,addComment
,addSpaceComment
andremoveComment
New in version 4.1.1.
Parameters: fileId (int) – The corresponding id of the file
Returns: A list of comments.
Return type: list[dict]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getFile
(id)¶ Returns information about the given File Id.
returns: A File object Parameters: id (int) – The File id
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getFiles
(spaceId, filePath, trashed)¶ Returns a list of files matching Space Id, file path and trashed flag.
returns: A list of File objects Parameters: - spaceId (int) – The Id of the Space
- filePath (str) – the path of the file in the Space.
- trashed (bool) – Is the file in the trash?
Return type: list[dict]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getFolderContent
(spaceId, filePath, trashed)¶ Returns a list of file Ids in a folder of a Space.
Example:
python ./TeamDriveApi.py '127.0.0.1:45454' getFolderContent 3 / False [756,767,737,769,629,763,628,630,830,765]
Parameters: - spaceId (int) – The Id of the Space
- filePath (str) – The parent folder path.
- trashed (bool) – In Trash?
Return type: list[int]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getFullAddressbook
()¶ Returns all Addressbook entries at once.
Example:
$ python ./TeamDriveApi.py '127.0.0.1:45454' getFullAddressbook
[ { "id": 1, "email": "info@teamdrive.net", "name": "My Name", "icon": "self" } ]
Note
As this function was added with TeamDrive 4, the fall back for TeamDrive 3 is to iterate over all Addressbook Ids, therefore this function is much slower.
New in version 4.0.
Return type: list[dict]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getFullFolderContent
(spaceId, filePath, trashed)¶ Returns a list of file information in a folder of a Space.
Example:
$ python ./TeamDriveApi.py '127.0.0.1:45454' getFullFolderContent 3 / False
[ { "isDir": true, "name": "My folder", "currentVersionId": 0, "spaceId": 3, "isInFileSystem": true, "hasNameConflict": false, "hasVersionConflict": false, "path": "/", "id": 756, "permissions": "rwxr-xr-x" }, { "isDir": false, "name": "My File", "currentVersionId": 0, "spaceId": 3, "isInFileSystem": true, "hasNameConflict": false, "hasVersionConflict": false, "path": "/", "id": 767, "permissions": "rwxr-xr-x" } ]
Note
As this function was added with TeamDrive 4, the fall back for TeamDrive 3 is to iterate over getFolderContent, therefore this function is much slower.
See also
New in version 4.0.
Returns: A list of File objects
Parameters: - spaceId (int) – The Id of the Space
- filePath (str) – The parent folder path.
- trashed (bool) – In Trash?
Return type: list[dict]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getLicense
()¶ Returns information about the current License.
Returns: { "distributor": "DOCU", "licenseKey": "DOCU-8782-5485-7266", "licenses": [ "WebDAV", "Professional" ] }
New in version 4.1.1.
See also
setLicenseKey
to set the license.Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getLoginInformation
()¶ Returns information about the current user.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getMember
(spaceId, addressId)¶ Returns information about a member of a Space.
Example:
$ python ./TeamDriveApi.py '127.0.0.1:45454' getMember 3 1
Returns: { "status": "active", "spaceId": 3, "addressId": 1 }
Parameters: - spaceId (int) – The Id of the Space
- addressId (int) – Already known Addressbook Id.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getProfilePicture
(id)¶ Returns the profile picture of the address.
See also
setProfilePicture
to set the profile picture of the current user.New in version 4.1.1.
Parameters: id (int) – The addressId.
Returns: The picture.
Return type: bytes | dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
-
getSettings
()¶ Returns a list of settings, with each setting a dict. An incomplete list of settings can be found in the Options Section.
Example :
{ "key": "identifier", "label": "readable label", "help": "help text", "type": "string|path|integer|bool|enum|bitmask", "value": "current value", "options": ["enum option 1", "enum option 2"], "flags": [{bit: <bit flag>, label: "readable label"}, ...] }
setSetting
can be used to set a specific setting.Return type: list
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getSpace
(id)¶ Will return information about that Space.
See also
getSpaceStatistics
for statistics.Example using Python:
>>> api = TeamDriveApi() >>> map(api.getSpace, api.getSpaceIds()) {.....}
Example using curl:
curl --user myTeamDriveUser http://127.0.0.1:45454/api/getSpace?id=310 :returns: A single :ref:`space-json-data-type`.
Parameters: id (int) – The Id of the Space
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getSpaceByName
(spaceName)¶ This is convenience wrapper of the Python module that is not part of the official API.
Returns a Space by a given Space name. Throws a
TeamDriveException
, if there is no Space with this name.Parameters: spaceName (str | unicode) – The Name.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveCallFailed – There is no Space with this name
- ValueError – no JSON returned. Wrong URL?
-
getSpaceComments
(spaceId)¶ Returns a list of all comments that are attached to the Space itself.
Example
>>> api = TeamDriveApi() >>> api.getSpaceComments(13)
Returns: [ { "creator": "test", "creatorAddressId": 1, "text": "file baz", "created": "2015-09-01T15:15:31Z", "commentId": 16, "initials": "te" }, { "creator": "test", "creatorAddressId": 1, "deleted": true, "created": "2015-09-01T15:15:28Z", "commentId": 15, "initials": "te" } ]
See also
New in version 4.1.1.
Parameters: spaceId (int) – The Space id.
Returns: A list of comments.
Return type: list[dict]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getSpaceIds
()¶ Returns a list of all known Spaces Ids.
Example:
>>> api = TeamDriveApi() >>> api.getSpaceIds() [1,4,5,6]
Return type: list[int]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getSpaceMemberIds
(spaceId)¶ Returns all Addressbook Ids in a given Space.
Example:
$ python ./TeamDriveApi.py '127.0.0.1:45454' getSpaceMemberIds 3 [1,2]
New in version 4.0.
Deprecated since version 4.1.1: Use
getSpaceMembers
instead.Return type: list[int]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getSpaceMembers
(spaceId)¶ Returns all Member infos in a given Space.
New in version 4.1.
Return type: list[dict]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getSpacePermissionLevels
()¶ Get a list of possible space permission “levels” (ie. read, read/write, admin, etc.) and their capabilities. Permission levels are returned in order of increasing “magnitude”. The reply of this call is constant and won’t change until the agent is restarted.
Returns: [ { "id": "none", "name: "None", "rights": { "memberInvite": False, "memberKick": False, "memberSetRights": False, "spaceRename": False, "spaceDeleteOnServer": False, "filePublish": False, "fileDeleteOnServer": False, "fileRename": False, "fileRestoreFromTrash": False, "fileChange": False } }, { "id": "read", "name": "Read" "rights": { ... } }, ... ]
New in version 4.1.1.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getSpaceStatistics
(id)¶ Returns Space statistics
New in version 4.1.1.
Parameters: id (int) – The Id of the Space
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getSpaces
()¶ Returns a list of all known Spaces.
Note
As this function was added with TeamDrive 4, the fall back for TeamDrive 3 is to iterate over all Space Ids, therefore this function is much slower.
See also
getSpaceStatistics
for statistics.returns: A list of Space objects, for example [ { "name": "My Space", "creator": "$TMDR-1007", "icon": "archived", "status": "archived", "status_message": "Space Archived", "id": 1, "spaceRoot": "/home/teamdrive/Spaces/My Space", "time": "2015-09-15T11:17:48Z", "permissionLevel": "read" }, { "name": "Api", "creator": "...", "spaceRoot": "/home/teamdrive/Spaces/Api", "icon": "space", "status": "active", "status_message": "OK", "id": 8, "fileId": 1, "time": "2015-09-15T11:17:48Z", "permissionLevel": "readWrite" } ]
New in version 4.0.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getVersion
(versionId)¶ Returns a single version.
>>> versionId = 42 >>> TeamDriveApi().getVersion(versionId)["versionId"] == versionId
New in version 4.1.4.
Parameters: versionId (int) – the id of the version
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
getVersions
(fileId)¶ Returns all versions of a file.
New in version 4.1.4.
Return type: list[dict]
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
inviteMember
(spaceId, addressId, text, permissionLevel=None, password=None)¶ Invites a user into a Space.
Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails.Parameters: - spaceId (int) – The Id of the Space
- addressId (int) – Already known Addressbook Id.
- text (str) – Invitation Text
- permissionLevel (str | None) –
The new user permission Level. Optional.
New in version 4.1.1.
- password (str | None) –
Optional. The password for the invitation.
New in version 4.1.1.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Inviting that member failed
- ValueError – no JSON returned. Wrong URL?
-
joinSpace
(id, disableFileSystem, spacePath=None, password=None, backupPath=None, fullRestore=None)¶ Accepts an invitation, joins an archived Space or rejoins an active one.
- Note: Password protected Invitations:
- Invitations may be protected by a password and accepting these invitations require the password
parameter.If an invitation is password protected,
getSpace
adds"isPasswordProtected": true
to the reply.
Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails.Parameters: - id (int) – The Id of the Space
- disableFileSystem (bool) – This will disable the synchronization into the file system. TeamDrive will only synchronize meta-data if this is True.
- spacePath (str | None) – Optional, Space root in the file system.
- password (str | None) –
Optional, Password for accepting this invitation.
New in version 4.1.1.
- backupPath (str) –
An optional backup path in case the space already exists in the file system.
New in version 4.2.1.
- fullRestore (bool) –
Do a full restore of the space.
New in version 4.2.1.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Joining failed
- ValueError – no JSON returned. Wrong URL?
-
kickMember
(spaceId, addressId)¶ Removes a member form this Space.
Removing a member from a Space will not remove this user from
getSpaceMemberIds
, but will set a this member to status “kicked” ingetMember
.Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails. For example, if the one doesn’t have the rights to remove a userNew in version 4.0.
Parameters: - spaceId (int) – The Id of the Space
- addressId (int) – Already known Addressbook Id.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Removing this user failed
- ValueError – no JSON returned. Wrong URL?
-
lockFile
(fileId)¶ Lock a file. Throws
TeamDriveException
, if the call fails.New in version 4.2.1.
Parameters: fileId (int) – The Id of the File
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
login
()¶ A TeamDrive Client installation is bound to a single TeamDrive account. Calling
login
authenticates TeamDrive user and creates a new device. this is typically the first call to an Agent.Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails.Example as Command line:
./TeamDriveApi.py '127.0.0.1:45454' --user myUser --pass myPass login
Example with Curl:
curl 'https://127.0.0.1:45454/login' --data-binary '{"username":"My User","password":"My Password"}'
Example:
>>> api = TeamDriveApi("127.0.0.1:45454", "My Username", "My Password") >>> api.login()
Note
On the desktop client, this call is not available, as the API will not be available until the user has successfully logged in. This is a technical limitation of the Gui Client.
See also
Chapter Authentication regarding Authentication.
Parameters: - username (str) – The Username
- password (str) – The Password
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Logging failed.
- ValueError – no JSON returned. Wrong URL?
-
moveFile
(spaceId, *args)¶ Either moveFile(self, spaceId, filePath, trashed, newFilePath) or moveFile(self, spaceId, fileId, newFilePath) Moves a file from filePath or fileId to newFilePath in the given Space.
Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails.Parameters: - spaceId (int) – The Id of the Space
- filePath (str) – the path of the file in the Space.
- trashed (int) – Is the file in the trash?
- fileId – fileIf of the file meing moved
- newFilePath (str) – The destination file path.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
performExternalAuthentication
(authToken)¶ Login using an external authentication token. The registration server must be configured to validate the token, refer the chapter “External Authentication” in the “TeamDrive Registration Server Reference Guide” for details.
Parameters: authToken (str) – The token generated by the authentication service
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Login failed.
-
publishFile
(fileId, password=None, expiraryDate=None)¶ Publishes the recent version of that file. The parameters password and expiraryDate are optional. Throws
TeamDriveException
, if the call fails.New in version 4.1.
Parameters: - fileId (int) – The Id of the File
- password (str) – Is the file in the trash?
- expiraryDate (str) – ISO 8601 extended format: either YYYY-MM-DD for dates or YYYY-MM-DDTHH:mm:ss, YYYY-MM-DDTHH:mm:ssTZD (e.g., 1997-07-16T19:20:30+01:00) for combined dates and times.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
putFile
(spaceId, path, data)¶ This is a Python specific accessor to the “files” API. The files API is another API endpoint to handle file content instead of meta data. Urls used by the files API are generated by concatenating the API endpoint
files/
plus the local Space Id (eg.3
) plus the full file path relative to the Space root (eg./my/path/to/the/file
). Such a url could look like this:http://127.0.0.1:45454/files/3/my/path/to/the/file
. This API does not support reading and writing files that are in the trash.This Uploads a file into a Space. The file creation is done asynchronously, a successful return code does not indicate a successful upload to the Server. Use
getFiles
to request the current state of that file.Example using telnet:
telnet 127.0.0.1 45454 PUT /files/3/testfile HTTP/1.1 Host: 127.0.0.1:45454 Accept-Encoding: identity Content-Length: 4 test
Example using curl:
echo "test" | curl -X PUT -d @- http://127.0.0.1:45454/files/3/testfile
Returns: a dict containgng a File object { "file": { "confirmed": false, "creator": "local", "currentVersionId": 6156, "hasComments": false, "icon": "default", "id": 7195, "isDir": false, "name": "testfile", "path": "/", "permissions": "rw-rw-r--", "size": 4, "spaceId": 3, "time": "2015-10-22T14:09:45" }, "result": true }
Note
In TeamDrive 3, this API endpoint was called
/webdav
.Parameters: - spaceId (int) – The Id of the Space
- path (str) – the path of the file in the Space.
- data – The binary data
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
-
putFileContent
(spaceId, spacePath, filePath)¶ Note
This is not part of the HTTP API. See
putFile
instead.Example:
$ python ./TeamDriveApi.py '127.0.0.1:45454' putFileContent 3 /testfile ./testfile
Parameters: - spaceId (int) – The Id of the Space
- spacePath (str) – the path of the file in the Space.
- filePath (str) – the path to the local file
Return type: dict
Raises: httplib.HTTPException – a Connection Error.
-
quit
(logout)¶ Quits TeamDrive.
Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails.Parameters: logout (bool) – Quit and also log out the current user. See
login
to log in afterwards.Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
removeComment
(commentId)¶ Marks this comment as “removed”
Using this function requires the HTTP POST method.
See also
getComments
,getSpaceComments
,addComment
andaddSpaceComment
New in version 4.1.1.
Parameters: commentId (int) – The id of the comment that will be deleted.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Removing this comment failed
- ValueError – no JSON returned. Wrong URL?
-
removeLocallyFile
(id, recursive=False)¶ Removes a file form the local file system by disabling the offline-available flag, but does not move this file into the trash or removes the file from the Space. This operation is not synchronized to other clients.
A successful return code does not indicate a successful execution, because it is done asynchronously.
Using this function requires the HTTP POST method.
See also
Parameters: - id (int) – the file to be removed
- recursive (bool) – Directories only: recursive remove
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
requestResetPassword
(username)¶ This call will reset the password of the user.
New in version 4.1.1.
Parameters: username (str) – The Username
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Logging failed.
- ValueError – no JSON returned. Wrong URL?
-
resolveVersionConflict
(versionId)¶ Changes the current version of a file to this version and resolves all version conflicts on this file.
Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails.See also
New in version 4.1.4.
Parameters: versionId (int) – The Id of the version
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
restoreLocallyFile
(id, recursive=False)¶ Restores a file form the local file system. A successful return code does not indicate a successful execution, because it is done asynchronously. This operation is not synchronized to other clients.
Using this function requires the HTTP POST method.
Parameters: - id (int) – the file to be restored
- recursive (bool) – Directories only: recursive restore
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
setAccountEmail
(email)¶ Sets the account e-mail.
Using this function requires the HTTP POST method.
Returns True, if the license key was successfully changed otherwise raises
TeamDriveException
ExceptionSee also
setLicenseKey
to set the license key.New in version 4.1.1.
Parameters: email (str) – The new e-mail address
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
- TeamDriveException – Failed to set email.
-
setCurrentVersion
(versionId)¶ Changes the current version of a file to this version.
Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails.See also
New in version 4.1.4.
Parameters: versionId (int) – The Id of the version
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
setLicenseKey
(licenseKey)¶ Overwrite the license key of this agent.
Using this function requires the HTTP POST method.
Returns True, if the license key was successfully changed otherwise raises
TeamDriveException
ExceptionSee also
setAccountEmail
to set the registration e-mail address.getLicense
to retrieve license infos.Parameters: licenseKey (str) – The new license key
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
setMemberPermissionLevel
(spaceId, addressId, permissionLevel)¶ Changes the permission level of another member.
Using this function requires the HTTP POST method.
Throws
TeamDriveException
, if the call fails. For example, if the one doesn’t have the rights to remove a userNew in version 4.1.1.
Parameters: - spaceId (int) – The Id of the Space
- addressId (int) – Already known Addressbook Id.
- permissionLevel (str) – the new permission level
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Removing this user failed
- ValueError – no JSON returned. Wrong URL?
-
setProfileInfo
(email=None, phone=None, mobile=None)¶ Sets profile information of the current user.
See also
setProfilePicture
to set the profile picture.New in version 4.1.1.
Parameters: - email (str | None) – Optional, the new e-mail.
- phone (str | None) – Optional, the new phone number.
- mobile (str | None) – Optional, the new mobile number.
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
setProfilePicture
(data)¶ Sets the profile picture of the current user.
See also
getProfilePicture
to retrieve profile pictures andclearProfilePicture
to clear the picture.New in version 4.1.1.
Parameters: data (bytes) – The blob.
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
setSetting
(key, value)¶ Set a Setting. must be a valid key as in
getSettings
. An incomplete list of settings can be found in the Options Section.Using this function requires the HTTP POST method.
Parameters: - key (str) – The name of the setting
- value – The new value of the setting
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
setSpaceSetting
(spaceId, key, value)¶ set a Space Setting. must be a valid key as in
getSpaceSettings
.Using this function requires the HTTP POST method.
New in version 4.1.2.
Parameters: - spaceId (int) – The Space id.
- key (str) – The name of the setting
- value – The new value of the setting
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
setTrashed
(fileId, inTrash)¶ Moves a file into or out of the trash. Trashing a file also removes the file from the local file system.
Throws
TeamDriveException
, if the call fails.Call
deleteFileFromTrash
to delete the file physically afterwards.See also
New in version 4.0.
Parameters: - fileId (int) – The Id of the Space
- inTrash (bool) – Is the file in the trash?
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
sse
()¶ This is the Server Side Events api listening on /sse. This API sends events according to the Server Side Events specification.
The implementation of the python wrapper requires Python 3.
Example Usage:
$ python3 TeamDriveApi.py '127.0.0.1:45454' sse data: { "event" : "FileEntryChanged", "fileId" : 0, "hasConflict" : 0, "isDir" : false, "isTrashed" : false, "name" : "my file", "path" : "/home/teamdrive/Spaces/My Space", "spaceId" : 3, "synced" : true } data: { "event" : "SpaceModified", "spaceId" : 3 }
Possible Event types are: FileEntryChanged, VersionEntryChanged, FileVersionPublished, FileVersionUnpublished and SpaceModified
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- ValueError – no JSON returned. Wrong URL?
-
unlockFile
(fileId)¶ Lock a file. Throws
TeamDriveException
, if the call fails.New in version 4.2.1.
Parameters: fileId (int) – The Id of the File
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
-
unpublishFile
(fileId)¶ Unpublishes the file. Throws
TeamDriveException
, if the call fails.New in version 4.1.
Parameters: fileId (int) – The Id of the File
Return type: dict
Raises: - httplib.HTTPException – a Connection Error.
- socket.error – a Connection Error.
- ConnectionRefusedError – a Connection Error.
- TeamDriveException – Failed to queue command.
- ValueError – no JSON returned. Wrong URL?
TeamDriveApi.TeamDriveException¶
-
class
TeamDriveApi.
TeamDriveException
(name, result)¶ In case of an error, the TeamDrive API returns a specific JSON document. Thy python Module will parse this error.
Example using curl:
curl -s '127.0.0.1:45454/api/getSpaces' { "error": 50, "error_message": "CJsonApi::ApiError (Error_Missing_Session)", "result": false, "status_code": 500 }
Example using the command line:
$ ./TeamDriveApi.py '127.0.0.1:45454' getSpaces Traceback (most recent call last): File "./TeamDriveApi.py", line 1178, in <module> main() File "./TeamDriveApi.py", line 1174, in main result = (getattr(TeamDriveApi, command)(api, *params)) File "./TeamDriveApi.py", line 307, in getSpaces return self._call("getSpaces") File "./TeamDriveApi.py", line 204, in _call return self._call(name, params, method) File "./TeamDriveApi.py", line 205, in _call raise TeamDriveException(name, jsonRes) __main__.TeamDriveException: Call getSpaces failed with {u'status_code': 500, u'error_message': u'CJsonApi::ApiError (Error_Missing_Session)', u'result': False, u'error': 50}
-
Error_HTTP_Method_Not_Allowed
= 2¶
-
Error_Insufficient_Rights
= 30¶
-
Error_Internal_Error
= 1¶
-
Error_Invalid_File_Key
= 43¶
-
Error_Invalid_Parameter
= 21¶
-
Error_Missing_Parameter
= 20¶
-
Error_Missing_Session
= 50¶ No or invalid credentials supplied.
See also
Chapter Authentication.
-
Error_Unknown_AddressId
= 42¶
-
Error_Unknown_Error
= 3¶
-
Error_Unknown_Space
= 40¶
-
Error_Unknown_User
= 41¶
-
Error_Wrong_Login
= 51¶
-
getError
()¶ The TeamDrive API Exception code :rtype: int
-
getErrorString
()¶ A human readable version of this error :rtype: str
-
getStatusCode
()¶ The HTTP status code of this exception. :rtype: int
-
Common JSON Data Types¶
The API returns common data types encoded in JSON objects for different API functions. This section provides an overview of some of these data types.
Space¶
This JSON object describes meta information about a single Space.
Member | Description |
---|---|
id |
Id of the Space. Used to identify a specific Space |
fileId |
FileId of the root-folder in this Space. Only present for active Spaces |
name |
Name of the Space |
spaceRoot |
Local path to the Space. |
invitor |
Invitations only: User name who created the invitation. |
creator |
User name who created the Space |
icon |
Space icon. |
status |
Status of the Space. |
status_message |
Describes the current status of this Space. |
hasTrashedFiles |
Has trashed files in the Space. |
isPasswordProtected |
Invitations only: This invitation needs a password. Obmitted if false. |
time |
Datetime of the last modification of this Space. |
text |
Invitation comment |
permissionLevel |
Permission level of the current user in this Space. (Not for invitations) |
hasComments |
Space has comments. (Not for invitations) |
newComments |
Amount of new comments in the Space. (Not for invitations) |
isOfflineAvailable |
“true”, if the Space will be synchronized to the local file system. TeamDrive will only synchronize meta-data if this is false (Not for invitations) |
Example:
{
"name": "Api",
"creator": "...",
"spaceRoot": "/home/teamdrive/Spaces/Api",
"icon": "space",
"status": "active",
"status_message": "OK",
"id": 8,
"fileId": 1
}
File¶
This JSON object describes meta information about a single File or diretory.
Member | Description |
---|---|
name |
File or Folder Name |
id |
Local Id. Mainly used as parameter. |
spaceId |
Space Id of the file. |
path |
Path to the file excluding the name. |
currentVersionId |
Version id that should be in the file system |
isDir |
Boolean value. true for directories. |
hasNameConflict |
File or Folder has a name conflict |
hasVersionConflict |
File has a version conflict |
permissions |
Unix permissions |
creator |
User name of the file creator. |
created |
file creation time. (Files only) |
icon |
icon name based on the file extension. (Files only) |
confirmed |
The current version is synchronized to the server. (Files only) |
size |
The size in bytes of the current version. (Files only) |
time |
file creation time. (Files only) |
lastModified |
Last modification time. (Files only) |
publicUrl |
URL to the file if it is published. (Files only) |
hasComments |
Boolean value. (Files only) |
isLockedByMe |
Boolean value. (Files only) |
isLockedByOther |
Boolean value. (Files only) |
trasher |
User name who deleted the file. (Files only) |
trashed |
deletion time. (Files only) |
Example:
{
"isDir": true,
"name": "My folder",
"currentVersionId": 0,
"spaceId": 3,
"isInFileSystem": true,
"path": "/",
"id": 756,
"permissions": "rwxr-xr-x"
}
Addressbook Entry¶
This JSON object describes meta information about a addressbook entry.
Member | Description |
---|---|
id |
Addressbook entry Id |
name |
User display name |
email |
Registration Email |
profile |
Profile information |
initials |
User’s initials |
Where Profile information is a JSON object containing:
Member | Description |
---|---|
email |
Display Email |
phone |
Phone number |
mobile |
Mobile nuber |
hasProfilePicture |
Boolean value. true for User’s with profile picture. |
